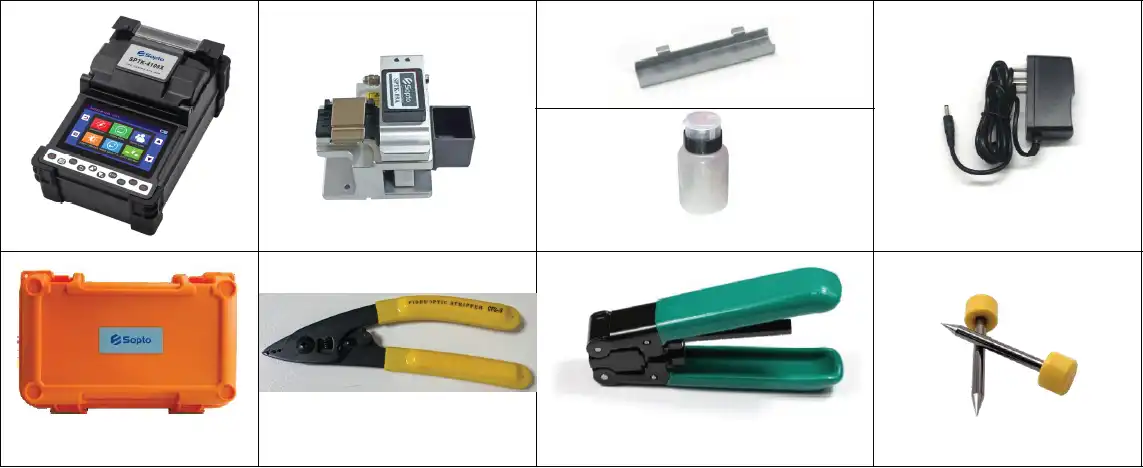

SPTK-4108X Optical Fiber Fusion Splicer
Features
- Waterproof, Dustproof, Windproof, Theft proof, Anti-shock
- Stable performance, low power consumption, low losses
- Compact and lightweight
- Designed for use in harsh environments
- Button + touchscreen, easy to operate
- 3 in 1 fiber holder, and compatible with SOC
Product Parameters
| Parameter | Specification |
|---|---|
| Fiber Alignment | 4 motors PAS alignment |
| Applicable fibers | SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZ/NZDS(ITU-T G.655), BI(ITU-T G.657) |
| Fiber holder | Detachable multi-functional fiber holder supports bare fiber/patch cord/drop cable etc. |
| Sheath diameter | 100~1000μm |
| Cladding diameter | 80~150μm |
| Splice mode storage | 100 splice modes |
| Splice time | SM Fast mode 7s |
| Heating mode storage | 20 heating modes |
| Heat time | SM Fast mode 15s, adjustable according to different sleeve |
| Applicable protection sleeve | 10~60mm |
| Splice image | 300 images |
| Splice result | 10000 splices (recyclable) |
| Typical Splice loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(DSF), 0.04dB(NZDS) and 0.02dB(BI) |
| Return loss | >>60dB |
| Splice loss estimation | High-accuracy loss estimation |
| Operating conditions | Altitude 0~5000m, Humidity 0~95%, Temperature -10~+50℃, Max. Wind speed 15m/s |
| Storage conditions | Humidity 0~95%RH, Temperature -10~+50℃ (Battery -10~+50℃) |
| Fiber tensile test force | 2N |
| Viewing methods | Dual-channel high-precision cameras, 4.3 inch bright display screen |
| Magnification | 130X Dual axis view(X&Y); 300X single axis view(X or Y) |
| Interface | USB |
| Electrode life | Approx. 5000 splices |
| Power supply | AC 100-240V, 50/60Hz |
| Battery capacity | 4000mAh large Capacity battery, supports 240 splices and heat cycles |
| Size & Weight | 208x137x101.4mm, 1.1kg (1.36kg with battery) |
Ordering Information
| Part Number | Product Description |
|---|---|
| SPTK-4108X | 4 Motors Optical Fiber Fusion Splicer |
Note: If you need more customized services, please contact us.
