SPFC-NH144M-4/6A Fiber Optic Splice Closure Product Guide
Description
SPFC-NH144M-4/6A is used as a termination point for the feeder cable to connect with drop cable in FTTH network system. It is designed to seal without screws. The compact size and flip-over cover bring easy operation as well as multi-purpose application.
Features
- Single-ended design
- Buckle design, easy to operate
- Fully mechanical seal
- Watertightness: IP68
- Impact test: IK09
- No tape, no glue, no heat shrink
- Flame retardant UV resistant materials, can be customized according to customer requirements
Specification
| Item | Parameter |
|---|---|
| Model | SPFC-NH144M-4/6A |
| Dimensions | 378.5(L)x242(W)x129(H)mm |
| Weight(kg) | 3.0-4.0 |
| Material | PP+GF |
| Sealing Type | Mechanical Seal |
| Cable ports | 1 uncut port(Diameter 10-17.5mm); 2pcs branch ports(Diameter 10-17.5mm); 6 drop cable ports(Diameter 3-7mm round cable & Diameter 6-12mm Micro-tube) |
| Splicing Capacity | 144 |
| Capacity of splice tray | 12 |
| Number of Splice Trays | 12 |
| Component | Splitter: 12pcs 1:8 micro PLC; Adaptor: NA |
| Application | Aerial/Wall/Pole Mounted |
Product Appearance

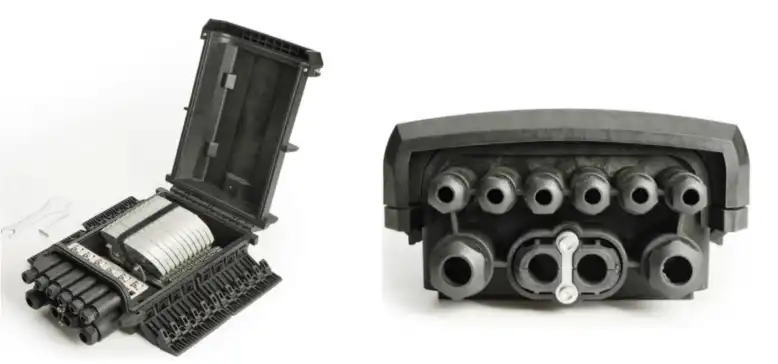

Please refer to the structure drawing for product appearance.
Structure Drawing

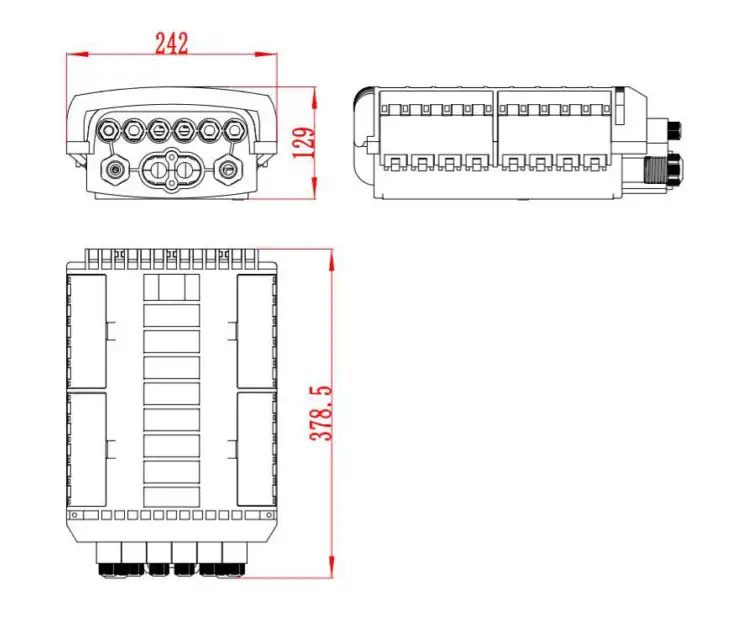

Please refer to the product structure drawing.
Application

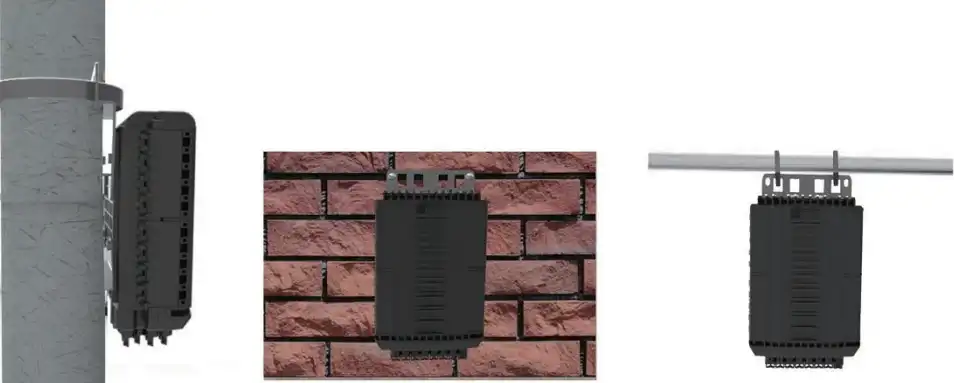

Suitable for aerial mounting, wall mounting, and pole mounting.

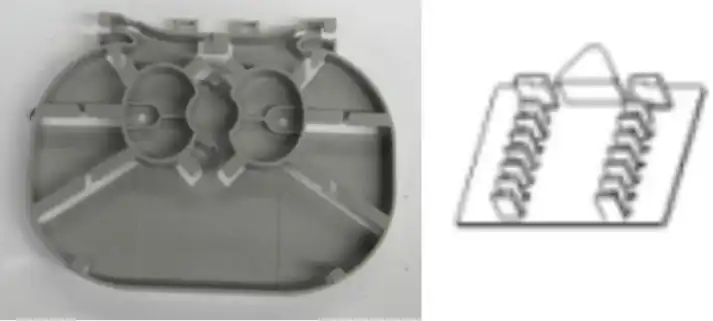

Splice Tray Specification
| Type | Tray Capacity | Tray Dimension | Splitter | Single-fiber Splices | Ribbon Fiber Splices |
|---|---|---|---|---|---|
| 40# | 12F | 256x125x13.8mm | 1:8 micro PLC | Yes | No |
Standard Accessories
Note: Pictures for reference only
| Item | Description | Qty |
|---|---|---|
| 1 | Allen Spanner | 1pc |
| 2 | Insulation tape | 1roll |
| 3 | Splicing protective tube | 1bag |
| 4 | Nylon cable tie | 1bag |
| 5 | Choke plug | 2pcs |
| 6 | Installation manual | 1set |
| 7 | Winding pipe | 1roll |
| 8 | EVA tube | 1roll |
| 9 | Sealing kits | 1set |
| 10 | φ16-25mm hose clamp | 4pcs |
| 11 | Tighten tool | 1set |
| 12 | Desiccant | 1pc |
| 13 | Clean paper | 1pc |
| 14 | Silicon oil | 1pc |
Optional Accessories
Note: Pictures for reference only
| Item | Description | Qty |
|---|---|---|
| 1 | Air Valve | 1set |
| 2 | Ground lead | 1set |
| 3 | Aerial mounting fittings | 1set |
| 4 | Pole mounting fittings | 1set |
| 5 | Wall mounting fittings | 1set |
Ordering Information
| Type | Size | Inner Carton Size | Outer Carton Size |
|---|---|---|---|
| SPFC-NH144M-4/6A | 380x245x130mm | 395x255x165mm(1pc) | 540x410x350mm(4pcs) |
