SPU-GE4200AW6-H XPON ONU Wifi 6 4GE+CATV+Dual-Band WIFI
Product Description
SPU-GE4200AW6-H is an indoor fiber broadband access terminal. The device provides one GPON/EPON adaptive optical port and supports XPON mode. It can also interconnect with the mainstream manufacture (Huawei/ZTE/Fiberhome) GPON or EPON OLT to provide users with Internet WIFI and CATV services based on GPON and EPON technology.
Functional Features
- In compliant with IEEE802.3ah and ITU-T G.984 standard
- Support ONU auto-discovery/Link detection/remote upgrade of software
- Support SN and LOID+Password multiple registration methods
- Support port VLAN configuration
- Support port-based rate limitation and bandwidth control
- Support MAC address learning
- Support MAC address learning account limit
- Support VLAN transparent/tag/translate/trunk
- Support broadcasting storm resistance function
- Support Dynamic Bandwidth Allocation (DBA)
- Support AES encryption and decryption
- EMS network management based on SNMP convenient for maintenance
- Support power-off alarm function easy for link problem detection
- Support Firewall
- Support MAC address/URL filter
- Support remote WEB/Telnet access control
- Support remote CATV port management
Product Interface and LED

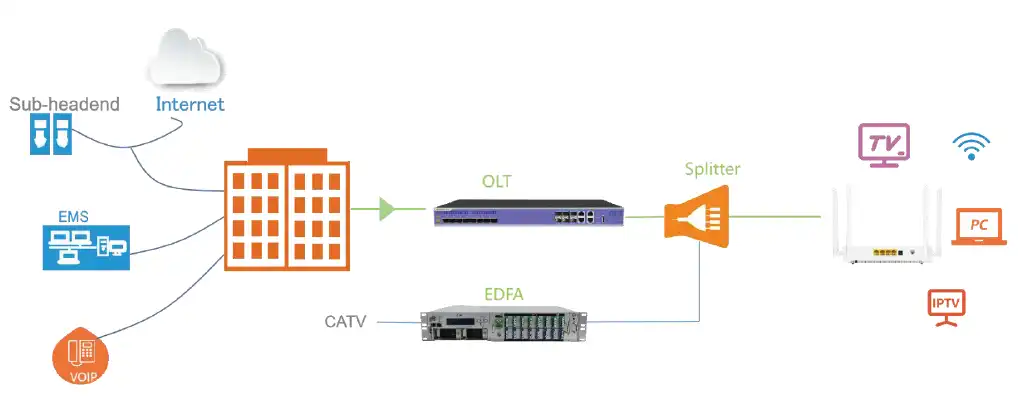

Network Construction

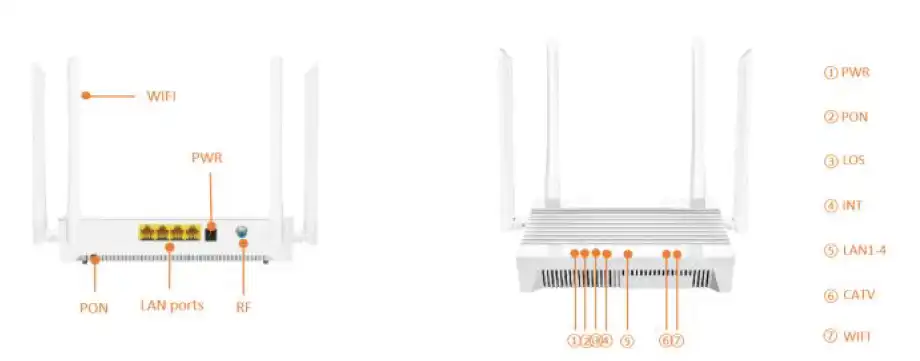

LED Definitions
| Indicator | Description | Status |
|---|---|---|
| PWR | Power status | On: The ONT is power on Off: The ONT is Power off |
| PON | ONT Register | On: Success to register to OLT Blinking: In process of registering to OLT Off: Failed to register to OLT or no normal optical signal input |
| LOS | PON optical signals | On: Optical power lower than receiver sensitivity Off: Optical in normal |
| LAN(1-4) | LAN port status | On: Ethernet connection is normal Blinking: Data is being transmitted through the Ethernet port Off: Ethernet connection is not setup |
| INT | Internet status indicator | On: The routed WAN Internet access service is normal Off: The routed WAN Internet access service is abnormal |
| WIFI | WIFI | Blinking: Data is being transmitted On: WIFI function Opens |
| CATV | CATV status | On: CATV optical normal Off: The CATV signals are not received |
Product Specifications
Mechanics
| Parameter | Specification |
|---|---|
| Dimensions | 210mm×135mm×45mm |
| Weight | About 300g |
Hardware
| Parameter | Sub-Parameter | Specification | Remark |
|---|---|---|---|
| User Port (LAN) | RJ-45 connector | ||
| 4*10/100/1000Mbps adaptive Ethernet port | |||
| Full/half duplex | |||
| Auto MDI/MDI-X | |||
| Indicators | PWR/PON/LOS/LAN(1-4)/INT/CATV/WIFI | ||
| PON Port | PON Mode | EPON: 1000BASE-PX20+ symmetric GPON: FSAN G.984.2 standard Class B+ | |
| PON Rate | EPON: 1.25Gbps downstream/upstream GPON: 2.488Gbps/1.244Gbps downstream/upstream | ||
| Wavelength | Transmit: 1310nm | Receiver: 1490nm | |
| Receiving sensitivity | EPON: -27dBm GPON: -28dBm | ||
| Saturated power | EPON: -3dBm GPON: -8dBm | ||
| Transmitting power | EPON: 0～4dBm GPON: 0.5～5dBm |
CATV (Input/Output Port)
| Wavelength: 1550nm |
| Input optical power: -18dBm～0dBm (with AGC) |
| RF frequency: 47MHz~1000MHz |
| RF output level: 78dBuV(@-12~-2dBm@85MHz) (with AGC) |
| RF output return loss: >12dB (with AGC) |
| RF impedance: 75Ω |
WIFI Performance Parameters
| IEEE802.11b/g/n(2.4G) IEEE802.11a/n/ac/ax(5G) |
| 2.4G: 40Mhz bandwidth maximum rate 300Mbps 5G: 80Mhz bandwidth maximum rate 1201Mbps Total wireless rate is 1500Mbps |
| 2.4G EIRP: 24dBm / 5G EIRP: 22dBm |
Environment
| Parameter | Specification |
|---|---|
| Working temperature | 0 to 40ºC |
| Operating humidity | 10%~90% (Non-condensing) |
Power
| Parameter | Specification |
|---|---|
| Power Supply | External 12VDC/1A power supply adapter |
| Power consumption | ≤12W |
Ordering Information
| Product Model | Descriptions |
|---|---|
| SPU-GE4200AW6-H | XPON ONU Wifi 6 4GE+CATV+2WIFI(AX1500) external 12VDC/1.5A power adaptor |
Note: If you need more customized services, please contact us.
