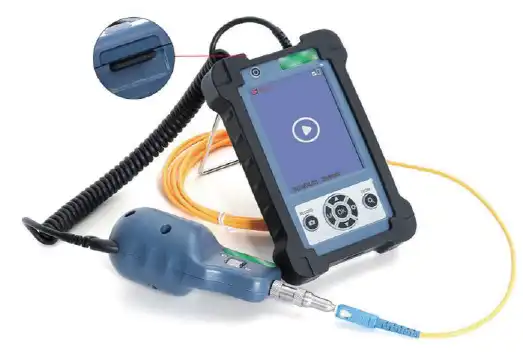

Product Characteristics
- Rotary metal bracket, stable and convenient
- 400 times magnification, the stain is clearly visible
- Compatible with FC/SC/ST/LC/SC female connector/LC male connector
- 3.5 inch HD LCD display
- 4000mAh large capacity lithium battery, 20 hours standby
- 1/3 inch sensor, 300,000 effective pixels
- Removable silicon case, reduce the damage by colliding or dropping to a certain extent
- Real-time video support, extend T-flash card, quick check the pollution degree of female connector and male connector
- Small size, one-handed convenient and fast
Use Display

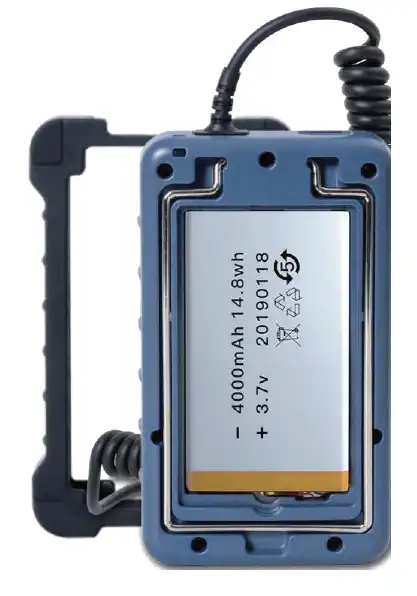

20 Hours 4000mAh Recycled
The machine is equipped with large capacity lithium-ion batteries with a capacity of up to 4000mAh. Standby time is up to 20 hours which is suitable for the needs of workers who go out for a long time. The machine adopts micro USB interface charging, standard is 3.7V, charging is more convenient and simple.
Rotary Bracket
The angle of the bracket can be adjusted by rotation at will, which is stable and convenient. From the perspective of ergonomics, there is no need to watch on a single hand-held screen. In line with ergonomics, comfortable grip, compact, light and durable. Full enclosure design, cushioning impact friction. Close protection, anti-falling, anti-seismic. Split type design is better on protection, reduce the damage by colliding or dropping to a certain extent.

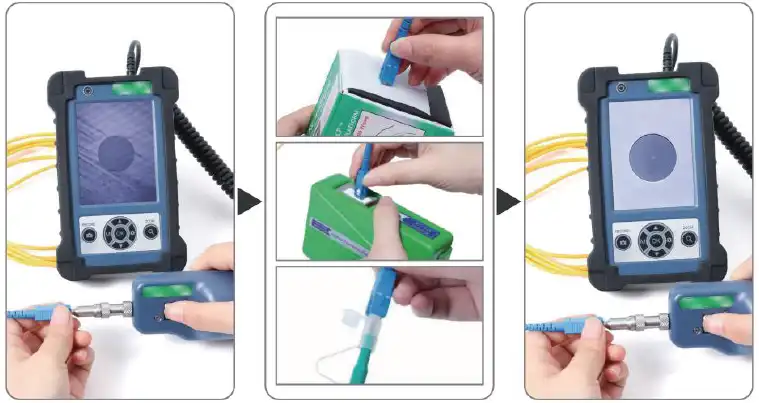

Real-time Video, Support TF Card Extension, Video Playback
Real-time video recording and expansion of TF card, convenient and fast recording of measurement information. Support data playback to facilitate inspection and data statistics. The panel design is concise, the operation is simple and practical, and the use is more humanized.
Product Specification
| Category | Subcategory | Parameter | Specification |
|---|---|---|---|
| Probe | Magnification | 400X | |
| Resolution (um) | ≥1.0 | ||
| Visual range (um) | 0.316×0.285 | ||
| Probe Dimension (um) | 235(W)×95(D)×30(H) | ||
| Image Sensor | 1/3 480 | ||
| Storage Temperature | -18℃~35℃ | ||
| Weight (kg) | 0.11 | ||
| 3.5-inch LCD display | Image | Image size (mm) | 22 |
| Pixels | 307200 | ||
| Video | Frequency | 25FPS | |
| LCD screen | 960×240 LCD | ||
| Video output mode | NTSC/PAL | ||
| Playback Format | AVI | ||
| User interface | Compatible memory cards | TF | |
| Capacity | 8GB | ||
| User interface | USB 1.1/2.0 | ||
| Hard disk format | FAT32 | ||
| Power supply | AC adapter | DC5V/2A | |
| Internal Battery | Lithium battery 4000mAh | ||
| Media Player | >7 hours | ||
| Weight (kg)/W×D×H (mm) | 0.085/78×22×56 | ||

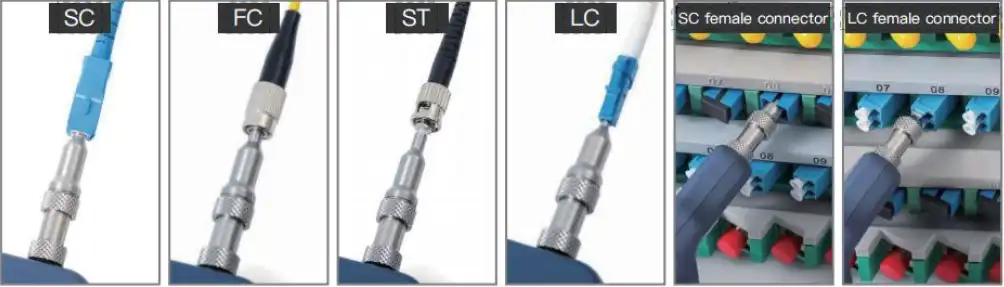

Support Interface
Compatible with FC/SC/ST/LC/SC female connector/LC male connector

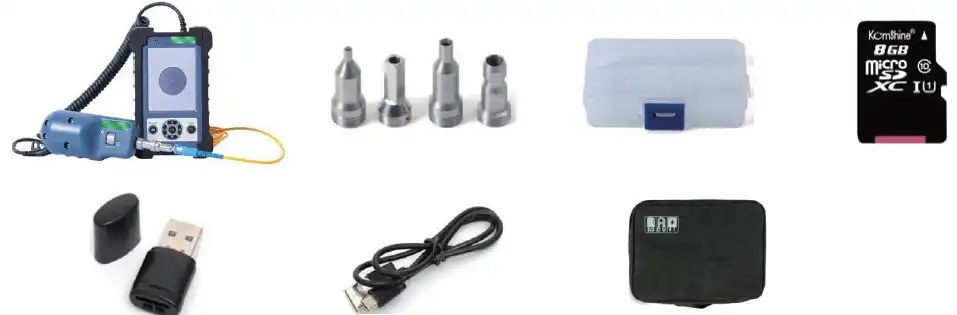

Product List
Main unit, adapters, charger, TF card, manual, etc.
