Product Overview
SPTK-HT200 Video Inspection Probe is a device specifically designed for fiber patch panel and cable assembly inspection. This probe offers a fast and effective means of installing, troubleshooting or maintaining fiber optic patch panels. When equipped with proper adapter tips, you can also inspect patch cords, pigtails and cable assemblies.
Application Scenarios
Patch Panel Inspection
Fiber patch panels are typically mounted in a rack allowing the front connector to be easily inspected but the back one is often difficult to access. Inspecting the connector on the front side of the panel can usually be performed with a simple fiber inspection microscope. However the back connectors are not as easily inspected with traditional microscopes thus requiring time-consuming troubleshooting. The probe offers a fast and effective means of installing, troubleshooting or maintaining fiber optic patch panels.
Cable Assembly Inspection
When Video Inspection Probe is equipped with proper Adapter Tip, you can also inspect patch cords, pigtails and cable assemblies.
Structure/Parts

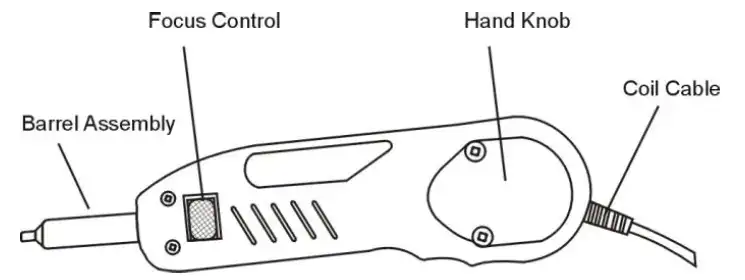

A. Analog Probe
This probe utilizes an analog CCD which outputs an NTSC or a PAL signal. The signal is routed through a 4-pin connector that routes power into the probe and the video signal out of the probe. This unit is suitable for use with our hand held LCD display.
- a1. Barrel Assembly: The barrel assembly houses the optics which accommodates different adapters such as FC, SC, ST, LC, E2000, MTRJ and other customized PC or APC adapters.
- a2. Focus Control: The default setting of magnification is 250x. When the figure shows on monitor, screw the focus control to make it clearest.

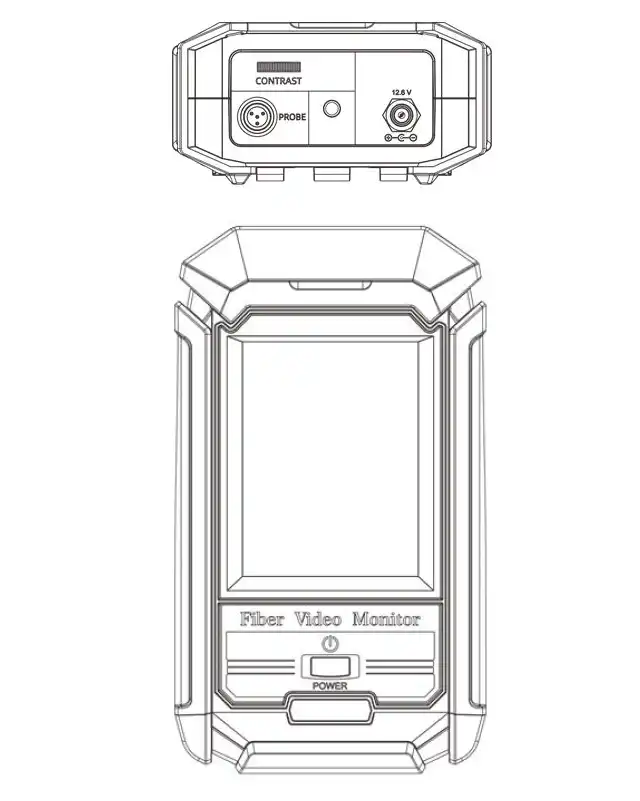

B. Hand-Held LCD Display
3.5 inch Monitor. These monitors can be powered by an output 110-240V DC/AC or a rechargeable Li-ion battery equipped inside. Video input is dedicated to PAL/NTSC formatted probe. All of the display's controls are built into the handle for easy access.

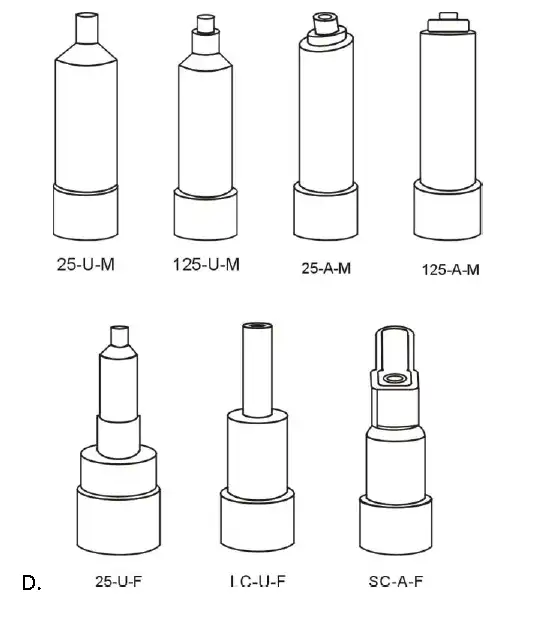

C. Standard Tips
Installation

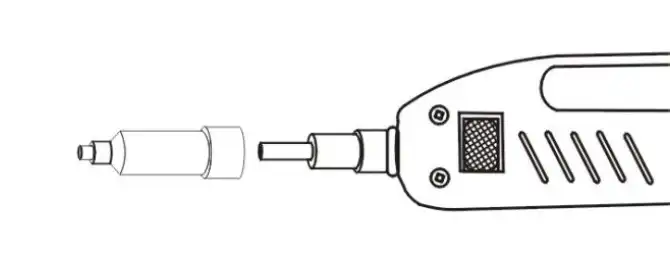

Tip Assembly - Installing Tips on Probe
- Step 1: Locate tip you want to install and look at the threaded end. This screw acts as a "key" and is already mounted with the Key Channel. DO NOT try to screw the Key Channel off from the threaded Key which might destroy the whole probe.
- Step 2: Slightly screw the Key that you need onto the Key Channel.
LCD Monitor Assembly & Controls
Using the LCD Display with the Probe - Connect the Probe to the Display:
- Step 1: Connect the cable from the probe to the monitor using the 4-pin connector on the bottom of the monitor.
- Step 2: Connect the AC power adapter/charger if necessary.
On/Off Control
(Toggle switch) Press upward to turn the unit on, press downward to shut the unit off.
AC Power
Using the DC/AC power adapter has the following advantages: Use external power (DC/AC power adapter/charger) to power the LCD directly from a DC/AC power source or charge the battery pack. Both can be accomplished simultaneously.
Technical Specifications
Video Inspection Probe
| Magnification | Resolution | Display | Video Output | Weight/Dimensions | Wire Length |
|---|---|---|---|---|---|
| 400x (9'' Monitor) 250x (3.5'' Monitor) | 0.5um | 3.5" TFT-LCD 960x240 pixels | NTSC/PAL | 0.18kg/18x4x3.5 cm | 1.2M |
Adapter Type Description
| 25-U-M | 125-U-M | 25-A-M | 125-A-M | 25-U-F |
|---|---|---|---|---|
| (2.5mm UPC Male) | (1.25mm UPC Male) | (2.5mm APC Male) | (1.25mm APC Male) | (2.5mm UPC) |
| FC/SC/ST/E2000 patch cord UPC termination | LC/MU patch cord UPC termination | FC/SC/ST/E2000 patch cord APC termination | LC/MU patch cord APC termination | FC/SC/ST/E2000 UPC bulkhead |
| LC-U-F | SC-A-F | FC-A-F | LC-A-F |
|---|---|---|---|
| (LC UPC Female) | (SC APC Female) | (FC APC Female) | (LC APC Female) |
| LC UPC bulkhead | SC APC bulkhead | FC APC bulkhead | LC APC bulkhead |
Other Parts
| Power Supply | Monitor | Work/Storage Temp |
|---|---|---|
| 3.7V 4500mA 5V/1A rechargeable Li Battery | 0.30kg/14.5x7.5x4cm | -20℃~+50℃ / -30℃~+60℃ |
Accessories
| Type | Standard Accessories | Optional Accessories |
|---|---|---|
| Function Description | Inspection Probe x1 3.5'' monitor x1 25-U-M x1 125-U-M x1 25-U-F x1 LC-U-F x1 Recharger Manual Carrying bag Li Battery | 25-A-M 125-A-M SC-A-F FC-A-F LC-A-F AV-USB2.0 Converter |
