Product Overview
SPTK-FC5 Optical Connector Cleaner Manual is a manual tool specifically designed for cleaning fiber optic connector end faces. This product features a tape-style cleaning design, easy operation, and excellent cleaning performance, suitable for daily cleaning maintenance of various fiber optic connectors.

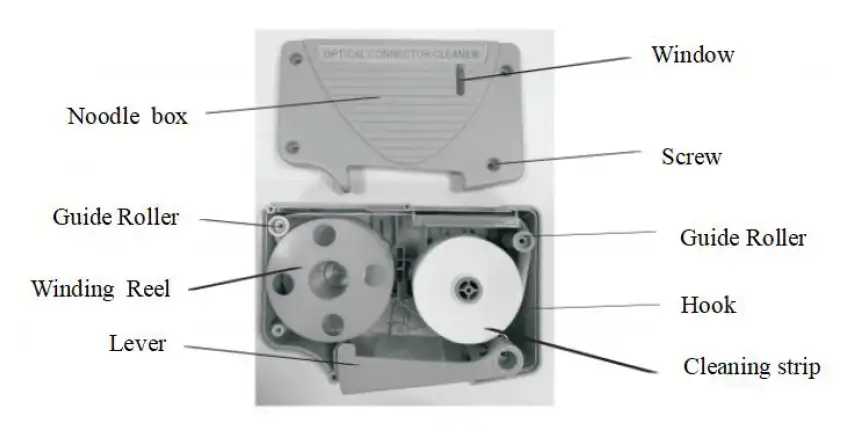

Structural Parts
The product mainly consists of the following parts:
- Shell
- Lever
- Cleaning Tape
- Lid
- Reel
- Cassette Tape Reel
- Screw
How to Use

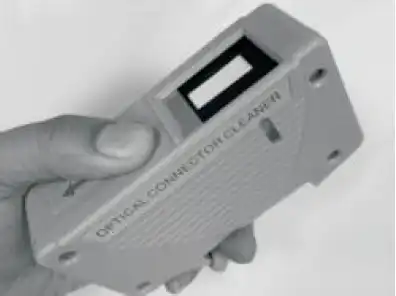

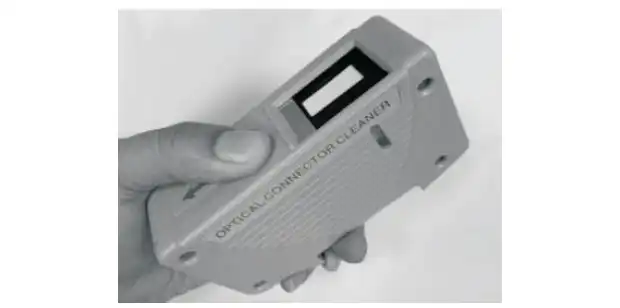

- Open the shutter by gripping lever. New cleaning tape will appear.

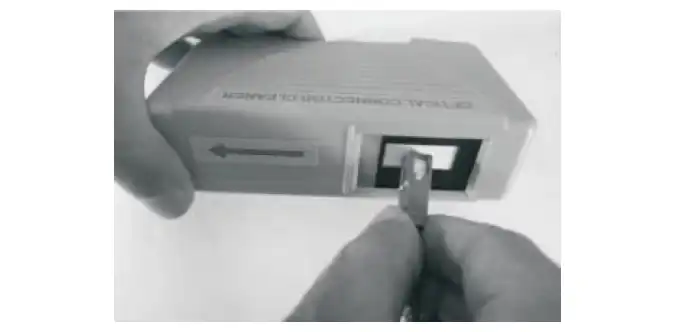

- Push and slide a ferrule end face while gripping the lever.
Replacement Method

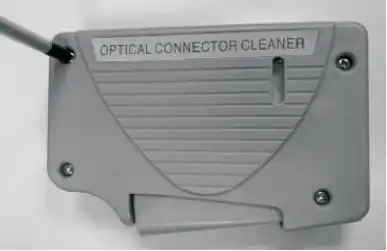

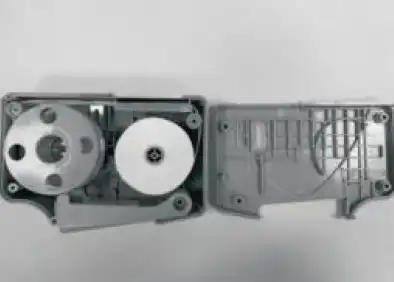

1, Turn the screw to open with a cross screwdriver lid. Take out the cassette tape reel and Reel.

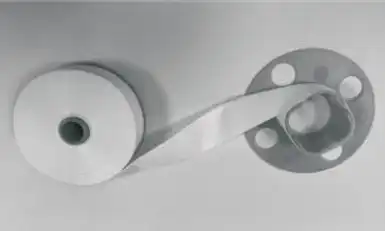

2, Load the new tape on the winding reel with a bonding tape.

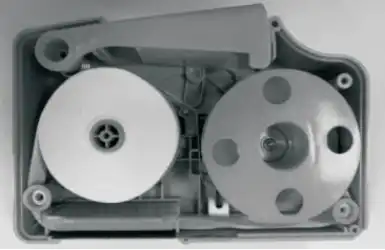

3, Then install the coiler and box reel.
4, Put the shell on.
5, Grip the lever 2 or 3 times and to check the tape is moving smoothly.Attention
- When the control lever is difficult to press it means that the cleaning strip needs to be replaced again.
- Pressing the lever repeatedly will damage the cleaning mechanism.
- Pay attention not to keep the product at the temperature above 60℃ for a long time Otherwise it may lose its function.
- Manual replacement of a new cleaning disk may cause damage if the correct method is not followed.
- If incorrect replacement parts are installed there is no warranty.
Contact Us
E-mail: info@sopto.com.cn
Web: http://www.sopto.com.cn
Note: If you need more customized services, please contact us.
