SPTK-4600B Optical Fiber Fusion Splicer
Six-Motor Core Alignment · Engineered for Backbone Networks
Product Overview
The SPTK-4600B is a high-end optical fiber fusion splicer designed specifically for backbone network projects. It employs six-motor core alignment technology to achieve ultra-low splice loss (typical value 0.02dB), making it suitable for splicing single-mode, multi-mode, and specialty fibers.
The device supports automatic fiber identification, completing fiber type recognition and parameter matching with a single button press. It is equipped with a 4.3-inch HD color capacitive touchscreen for intuitive operation. Built-in GPS positioning allows real-time device location tracking, ideal for field operations and asset management. The unit operates reliably in harsh environments from -10°C to 50°C with wind resistance up to 15 m/s, making it an excellent choice for communication engineering construction and maintenance.
Key Features
Six-Motor Core Alignment
Six independently controlled motors achieve high-precision fiber core alignment with low splice loss and excellent repeatability, ensuring consistent splice quality.
Automatic Fiber Identification
Built-in intelligent recognition algorithm automatically determines fiber type and matches optimal splicing parameters, reducing manual intervention and improving efficiency.
GPS Positioning & Tracking
Built-in SIM card supports GPS positioning, enabling real-time location recording for efficient field operation dispatch and asset tracking.
Anti-Fake Electrode
Electrodes feature ID anti-counterfeiting marks to ensure genuine consumables, guaranteeing splice performance and electrode lifespan (typical 5,000 splices).
Touchscreen + Button Dual Mode
4.3-inch HD color capacitive touchscreen combined with physical buttons, supports glove operation and remains responsive in harsh conditions.
Long Battery Life & Fast Charging
5400mAh battery supports over 300 splices and heat shrinking cycles; charges to 80% in 3 hours, full charge in 4 hours, meeting all-day field work needs.
Technical Specifications
| Parameter | Specification |
|---|---|
| Fiber Alignment | 6 Motors Core Alignment |
| Applicable Fibers | SMF (G.652/657), MMF (G.651), DSF (G.653), NZDSF (G.655), BI (G.657) |
| Cladding Diameter | 80 ~ 150 μm |
| Sheath Diameter | 100 ~ 1000 μm |
| Cleave Length | 8 ~ 16 mm |
| Splice Modes | 100 modes total, supports custom modes and parameters |
| Typical Splice Time | 6 sec (SM FAST mode) |
| Typical Splice Loss | SM: 0.02dB / MM: 0.01dB / DSF: 0.04dB / NZDS: 0.04dB / BI: 0.02dB |
| Return Loss | >> 60 dB |
| Heating Modes | Max. 20 |
| Typical Heating Time | 16 sec |
| Applicable Sleeve | 10 ~ 60 mm |
| Splice Result Storage | Last 20,000 splices |
| Splice Image Storage | Max. 800 images |
| Viewing System | Dual-axis CMOS camera + 4.3-inch HD color capacitive touchscreen |
| Magnification | X/Y or simultaneous X+Y, up to 760x magnification |
| Interface | MicroSD slot + USB port (software upgrade / data management) |
| Electrode Life | Typical 5,000 splices |
| Battery Capacity | 5400 mAh, over 300 splices & heating cycles; 4-hour full charge, 80% in 3 hours |
| Power Supply | AC 100~240V, 50/60Hz |
| Fiber Tensile Test | 2 N |
| Operating Temperature | -10 ~ +50 °C |
| Operating Humidity | 0 ~ 95% RH (non-condensing) |
| Operating Altitude | 0 ~ 5,000 m |
| Wind Resistance | Up to 15 m/s |
| Dimensions (W×D×H) | 133 × 144 × 133 mm |
| Weight | 1.56 kg (without battery) / 1.86 kg (with battery) |
| GPS (Optional) | Built-in SIM card, supports positioning and tracking |
Application Scenarios
- Backbone Network Construction: Designed for long-haul trunk and metro core networks, supporting multiple fiber types for high-reliability splicing requirements.
- Field Cable Installation: Operates in -10°C to 50°C temperatures and high humidity, resistant to 15 m/s winds, with GPS real-time positioning for team coordination.
- Communications Maintenance: 5400mAh battery supports all-day outdoor work, fast charging reduces downtime between jobs.
- Data Center Cabling: Supports custom splicing for fibers with different core diameters, meeting diverse needs in high-density cabling scenarios.

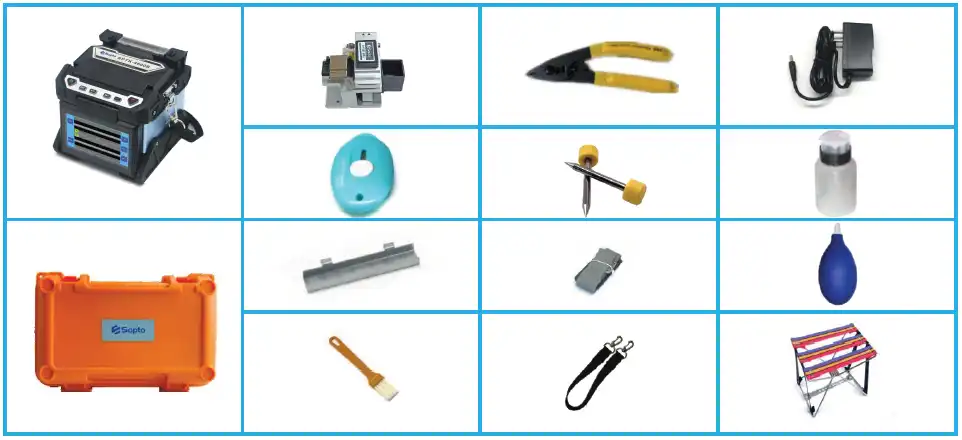

Ordering Information
| Part Number | Product Description |
|---|---|
| SPTK-4600B | Optical Fiber Fusion Splicer |
For customized services, please contact us:
