Product Overview
The SPTK-08X is a one step type fiber cleaver with strong rust prevention and removable waste fiber collection box. It features press the cutting design, three in one fixture, tungsten steel blade, and supports hot melt cold joint. With 24 cutting points, cleave angle about 0.5°, and blade lifetime around 48000 times. Suitable for 0.25mm and 0.9mm fiber cleaving preparation.
Features
- Strong rust prevention
- Removable waste fiber collection box
- Press the cutting
- Three in one fixture
- Tungsten steel blade
- Hot melt cold joint

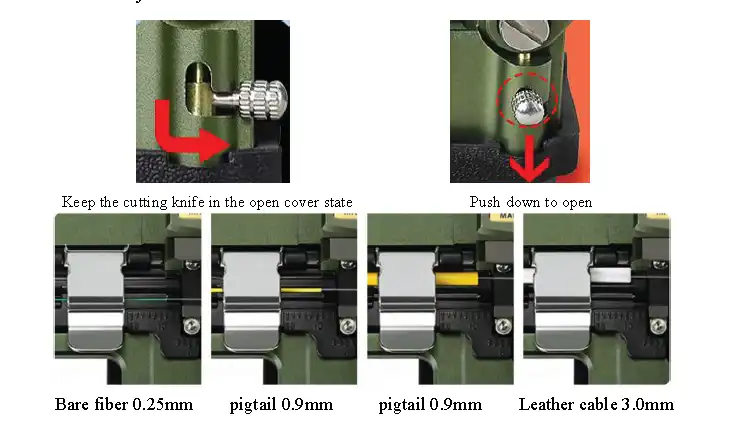

Operation Instructions
Keep the cutting knife in the open cover state. Push down to open. Suitable for:
- Bare fiber 0.25mm pigtail
- 0.9mm pigtail
- 0.9mm Leather cable
- 3.0mm cable
Specifications
| Parameter | Specification |
|---|---|

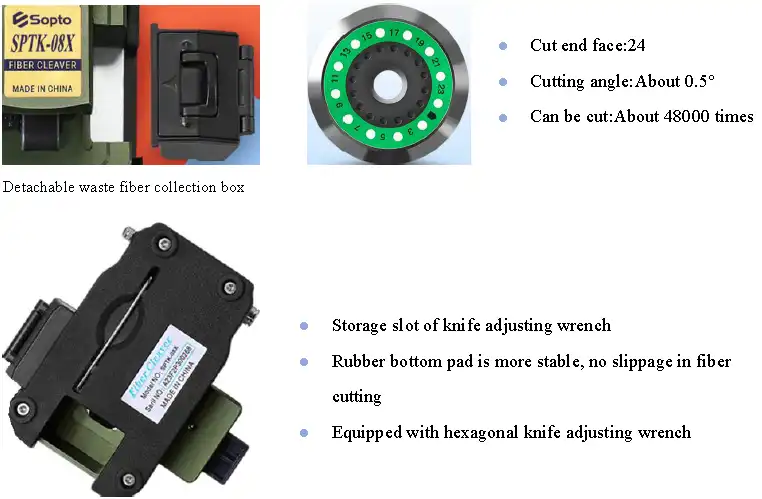

| Cut end face | 24 points |
| Cutting angle | About 0.5° |
| Can be cut | About 48000 times |
| Waste fiber collection box | Detachable |
| Storage slot of knife adjusting wrench | Yes |
| Rubber bottom pad | More stable, no slippage in fiber cutting |
| Equipped with hexagonal knife adjusting wrench | Yes |
| Suitable for optical fiber type | 0.25&0.9mm |
| Cutting length | 9-16mm(Ø0.25)/10-16mm(Ø0.9) |
| Fiber diameter type | 125μm |
| Outline dimension | 86*86*46mm |
| Cutting angle | About 0.5° |
| Blade life | About 48000 times |
| Weight | 220g |
Ordering Information
| Part Number | Product Description |
|---|---|
| SPTK-08X | One step type fiber cleaver |
