Product Overview
SPTK-01V is a one step fiber cleaver with press to cut design, equipped with tungsten steel blade, supporting hot melt/cold welding. Features include push for replacement of cutting points, automatic knife return, waste fiber storage box, 3in1 fixture, safety lock design, adjustable blade height. Cutting angle about 0.5°, 28 cutting surfaces, blade life about 48000 times. Suitable for φ0.25/φ0.9/φ3.0mm/3.0*2.0mm fiber cutting preparation.
Product Features
- Press to cut
- Tungsten steel blade
- Hot melt/cold welding
- Push for replacement of cutting points
- Automatic knife return
- Waste fiber storage box
- 3in1 fixture
- Safety lock design
- Adjustable blade height
Operation Instructions

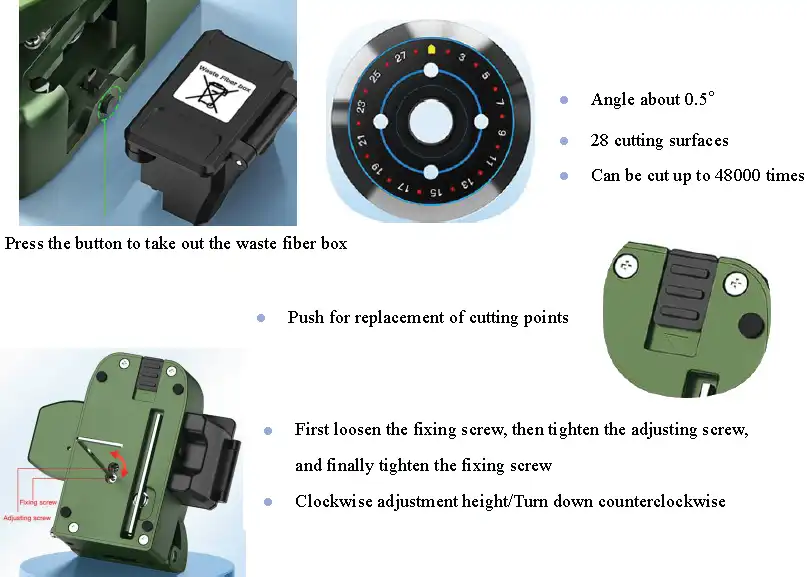

Waste Fiber Box Operation
Press the button to take out the waste fiber box
Replacement of Cutting Points
First loosen the fixing screw then tighten the adjusting screw and finally tighten the fixing screw
Blade Height Adjustment
Clockwise adjustment height/Turn down counterclockwise

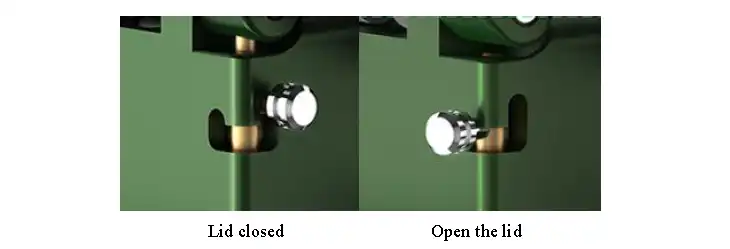

Lid Operation
- Lid closed
- Open the lid
Product Specifications
| Parameter | Specification |
|---|---|
| Adapt to optical fiber types | φ0.25/φ0.9/φ3.0mm/3.0*2.0mm |
| Adaptive optical fiber | Quartz fiber |
| Adapt to bare fiber core diameter | 125μm |
| Cutting fiber length | 9–24mm |
| Outline dimension | 7.9×7.4×4.8cm |
| Cutting angle | about 0.5° |
| Blade life | about 48000 times |
Cutting Surface Description
28 cutting surfaces, cutting angle about 0.5°, can be cut up to 48000 times
Ordering Information
| Part Number | Product Description |
|---|---|
| SPTK-01V | One step type fiber cleaver |
