SPT-P2T13V3-40D SFP Dual TX 1310nm Video 3G SDI 40km Optical Module Product Guide

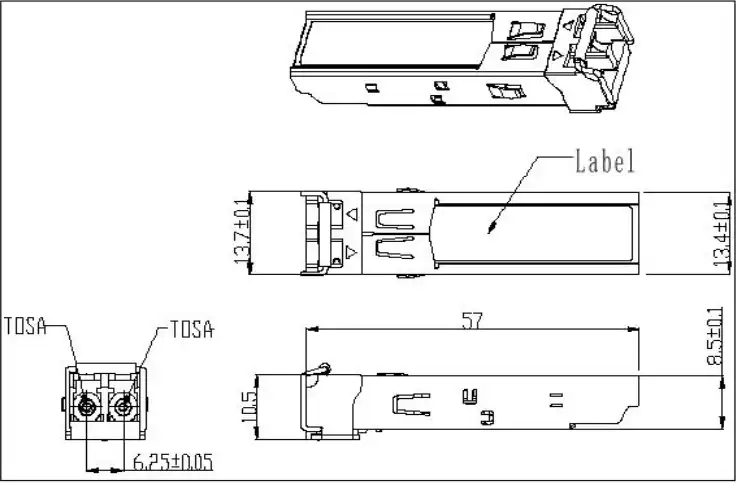

Product Overview

The SPT-P2T13V3-40D is a SFP dual-channel optical transmitter module designed to transmit data rates from 50Mbps to 2.97Gbps and is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M, SMPTE 292M, and SMPTE 424M serial rates. The module is fully compliant with SMPTE 297M-2006.

The transmitter is a dual channel optical transmitter module, one channel consists of two sections: a DFB laser transmitter and MCU control unit. All modules satisfy Class I laser safety requirements.

Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply VoltageVcc-0.54.5V
Storage TemperatureTs-40+85°C
Operating Humidity-585%

Recommended Operating Conditions

ParameterSymbolMinTypicalMaxUnit
Operating Case Temperature (Standard)Tc0-+70°C
Power Supply VoltageVcc3.133.33.47V
Power Supply CurrentIcc--500mA
Data Rate---3Gbps

Optical and Electrical Characteristics

ParameterSymbolMinTypicalMaxUnitNotes
Transmitter
Centre Wavelengthλc126013101360nm-
Spectral Width (-20dB)σ--1nm-
Side Mode Suppression RatioSMSR30--dB-
Average Output PowerPout-20+2dBm1
Extinction RatioER5--dB-
Rise/Fall Time (20%~80%)tr/tfSD-SD: 1500
HD-SD: 270
3G-SD: 135
--ps2
Total Output Jitter-PRBS and SD-SD: 70
HD-SD: 50
3G-SD: 70
-PRBS and SD-SD: 200
HD-SD: 135
3G-SD: 100
ps-
Pathological Output Jitter-SD-SD: 200
HD-SD: 115
3G-SD: 120
--ps-
Data Input Swing DifferentialVIN400-1800mV3
Input Differential ImpedanceZIN90100110Ω-
TX Disable-2.0-VccV-
Disable Enable-0-0.8V-
TX Fault-2.0-VccV-
TX Fault Normal-0-0.8V-

Notes:
1. The optical power is launched into SMF.
2. Rise and fall times 20% to 80% are measured following a fourth-order Bessel-Thompson filter with a bandwidth of 0.75xclock frequency corresponding to the serial data rate.
3. PECL input internally AC-coupled and terminated.
4. Internally AC-coupled.

Timing and Electrical

ParameterSymbolMinTypicalMaxUnit
Tx Disable Negate Timet_on1--ms
Tx Disable Assert Timet_off--10us
Time To Initialize including Reset of Tx Faultt_init--300ms
Tx Fault Assert Timet_fault--100us
Tx Disable To Resett_reset--10us
Serial ID Clock Ratef_serial_clock-280-KHz
MOD_DEF (0:2)-HighVH2-VccV
MOD_DEF (0:2)-LowVL--0.8V

Diagnostics Specification

ParameterRangeUnitAccuracyCalibration
Temperature0 to +70°C±3°CInternal / External
Voltage3.0 to 3.6V±3%Internal / External
Bias Current0 to 100mA±10%Internal / External
TX Power-2 to 2dBm±3dBInternal / External

I2C Bus Interface

The I2C bus interface uses the 2-wire serial CMOS E2PROM protocol. The serial interface meets the following specifications:

  • Support a maximum clock rate of 280KHz
  • Input/Output levels comply with LVCMOS/LVTTL or compatible logics
  • Low: 0-0.8V
  • High: 2.0-3.3V
  • Undefined: 0.8-2.0V

Pin Definitions

Pin Descriptions

PinSignal NameDescriptionPlug Seq.Notes
1VEE_TX1Transmitter 1 Ground1-
2TX1_FAULTTransmitter 1 Fault Indication3Note 1
3NCNot Connected3-
4VEE_TX1Transmitter 1 Ground3-
5I2C CLKSCL Serial Clock Signal3Note 3
6I2C DATASDA Serial Data Signal3Note 3
7VEE_TX2Transmitter 2 Ground3-
8TD2+Transmit 2 Data In3Note 4
9TD2-Inv. Transmit 2 Data In1Note 4
10TX2_DISTransmitter 2 Disable1Note 2
11VEE_TX2Transmitter 2 Ground1-
12TX2_FAULTTransmitter 2 Fault Indication3Note 1
13NCNot Connected3-
14VEE_TX2Transmitter 2 Ground1-
15VCC_TX2Transmitter Power 2 Supply2-
16VCC_TX1Transmitter Power 1 Supply2-
17VEE_TX1Transmitter 1 Ground1-
18TD1+Transmit 1 Data In3Note 4
19TD1-Inv. Transmit 1 Data In3Note 4
20TX1_DISTransmitter 1 Disable1Note 2

Notes:
Plug Seq.: Pin engagement sequence during hot plugging.
1) TX Fault is an open collector output which should be pulled up with a 4.7k~10kΩ resistor on the host board to a voltage between 2.0V and Vcc+0.3V. Logic 0 indicates normal operation; Logic 1 indicates a laser fault of some kind. In the low state the output will be pulled to less than 0.8V.
2) TX Disable is an input that is used to shut down the transmitter optical output. It is pulled up within the module with a 4.7k~10kΩ resistor. Its states are:
- Low (0 to 0.8V): Transmitter on
- (>0.8V <2.0V): Undefined
- High (2.0 to 3.465V): Transmitter Disabled
- Open: Transmitter Disabled
3) They should be pulled up with a 4.7k~10kΩ resistor on the host board. The pull-up voltage shall be VCC_TX1 or VCC_TX2.
- I2C CLK is the clock line of two wire serial interface for serial ID
- I2C DATA is the data line of two wire serial interface for serial ID
4) TD1/2-/+ : These are the differential transmitter inputs. They are internally AC-coupled differential lines with 100Ω differential termination inside the module.

Ordering Information

Part NumberProduct Description
SPT-P2T13V3-40DTransceiver SFP Dual TX 1310nm Video 3G SDI 40km LC Interface with DDM, Commercial Temperature
Note: If you need more customized services, please contact us.
