SPT-NB3503(5303)-S02TD 155Mb/s PECL Multi-Mode Bi-DI Transceiver
Features
- Single Fiber Bi-Directional MM optical Transceiver
- Transmitter section Selects 1310nm FP\1550nm FP LD
- Standard +3.3V/+5V Power Supply
- SC/FC/ST or pigtail optical interface
- Standard PECL data output with signal detect indication
- Standard 1x9 package
Applications
- Applied to optic fiber transmission systems such as SDH\ATM\Ethernet with bit rate up to 155Mbps
Specifications
| Parameter | Condition | Min | TYP | Max |
|---|---|---|---|---|
| Wavelength | 1310nm | 1270 | 1310 | 1350 |
| 1550nm | 1530 | 1550 | 1570 | |
| Power Supply Vcc | 3.135 | 3.3 | 3.465 | |
| 4.75 | 5 | 5.25 | ||
| Signal Level | PECL | 3.2~4.0 | ||
| LVPECL | 1.5~2.3 | |||
| Output Spectral Width | FP-LD.RMS | 4 | ||
| DFB-LD-20dB | 1 | |||
| Extinction Ratio（dB） | EX | 10 | ||
| Current of transmitter section | Vcc=5V | 100 | ||
| Vcc=3.3V | 100 | |||
| Current of receiver section | Vcc=5V | 110 | ||
| Vcc=3.3V | 110 |
Data Rate, LD Wavelength and Mode, Sensitivity, Reach
| Data Rate | LD | Wavelength and Mode | PO(dBm) | Sensitivity(dBm) | Reach |
|---|---|---|---|---|---|
| 155Mb/s | 1310nm FP | MM 1310nm | ≥-18 | ≤-33 | 5km |
| 1550nm FP | MM 1550nm | ≥-18 |
Absolute Maximum Ratings
| Parameter | Specification |
|---|---|
| Operating temperature (Commercial Level) | 0~+70℃ |
| Operating temperature (Industrial Level) | -40~+85℃ |
| Storage temperature | -40~+85℃ |
| Lead soldering temperature | <260℃ |
| Soldering duration | <10 Sec |

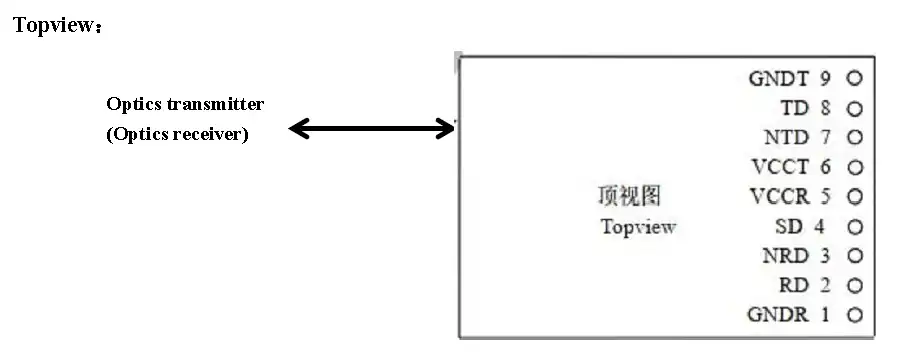

Pin Definitions
| Pin | Name | Level | Description |
|---|---|---|---|
| 1 | GNDR | Signal ground for Receiver | |
| 2 | RD+ | PECL/LVPECL | Data output of receiver section |
| 3 | RD- | PFCL/LVPECL | Reverse data output of receiver section |
| 4 | SD* SD-T** | PECL/LVPECL TTL | Signal Detect. Customers have options for PECL or TTL SD. |
| 5 | VccR | Power supply for receiver | |
| 6 | VccT | Power supply for transmitter | |
| 7 | TD- | PECL/LVPECL | Reverse Data input of transmitter section |
| 8 | TD+ | PECL/LVPECL | Data input of transmitter section |
| 9 | GNDT | Signal ground for Transmitter |
SD*: Default Signal Detect. PECL mode.
SD-T**: Optional Signal Detect. Compatible with TTL SD.

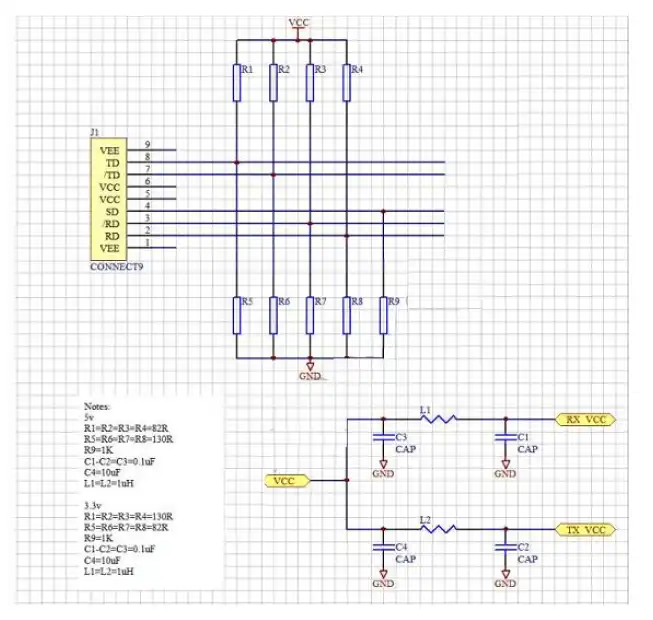

Recommended Application Configuration

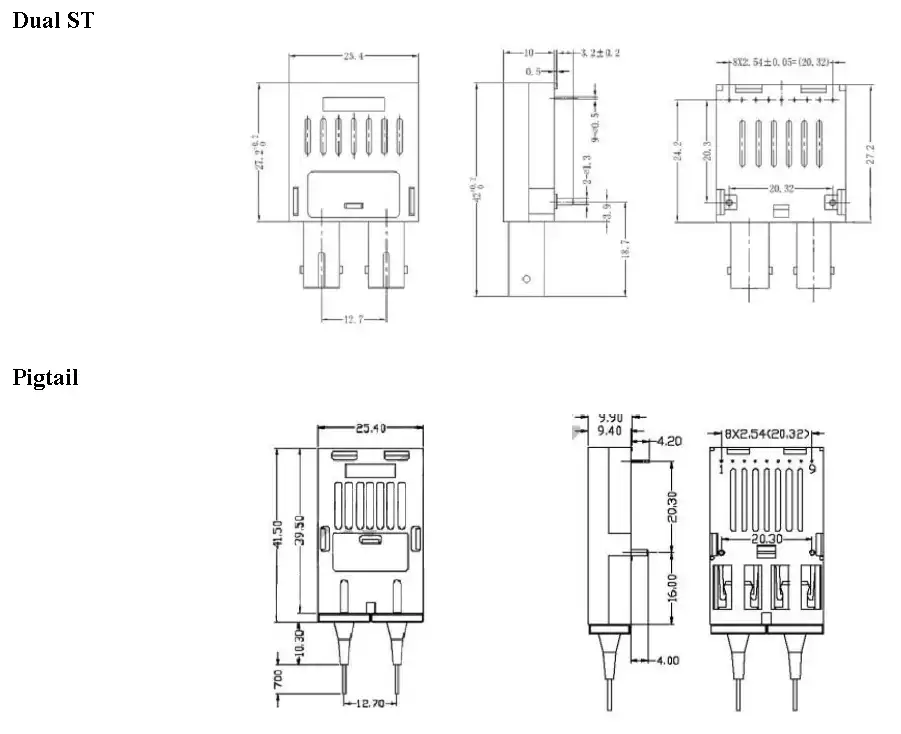

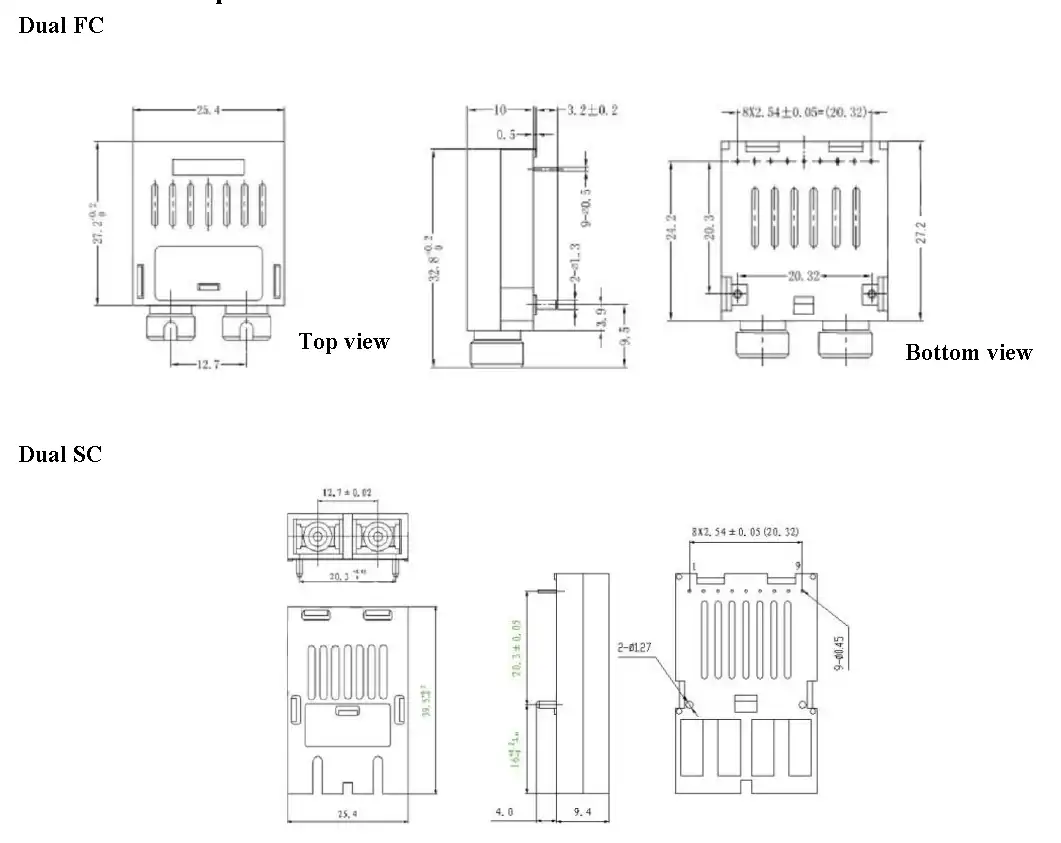

Dimension and Optical Interface
Supports the following optical interface types:
Ordering Information
| Part Number | Product Description |
|---|---|
| SPT-NB3503-S02TD | Transceiver 1x9 BIDI 1550nm Rx/1310nm Tx 155M Multimode 2km SC Interface Industrial Temperature 3.3/5V PECL |
| SPT-NB5303-S02TD | Transceiver 1x9 BIDI 1550nm Tx/1310nm Rx 155M Multimode 2km SC Interface Industrial Temperature 3.3/5V PECL |
Note: If you need more customized services please contact us.
