SPS-S58XX Series 10GE Routing Switches Carrier-Level Aggregation Layer-3 Ethernet Switch
Overview

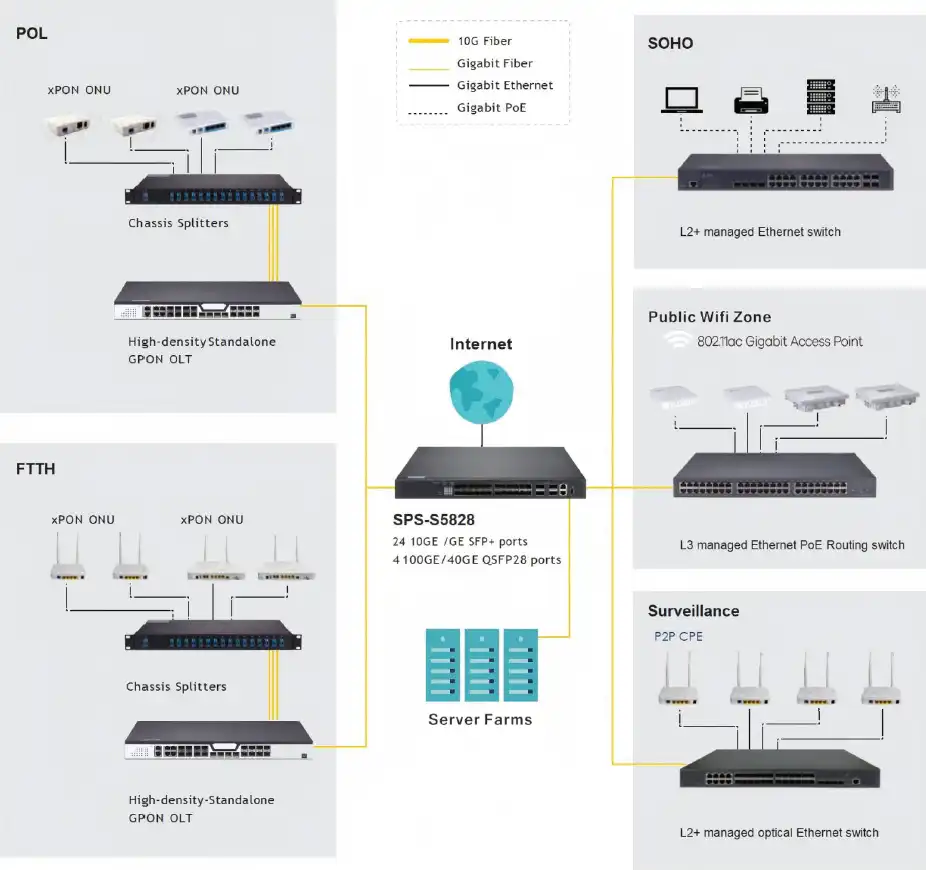

SPS-S58XX Series is a new generation of full-10GE routing switches. The SPS-S58XX Series adopts our most advanced hardware architecture designs.
SPS-S58XX Series (1U height) supports up to 2.56Tbps switching capacity and 48 10GE ports + 2 40GE ports + 4 100G ports or 72 10GE ports.
SPS-S58XX Series supports BVSS, TRILL, SDN and FCoE/FC. By cooperating with SPS-S95XX Series, SPS-S58XX Series can converge data of 15000+ 10GE servers.
Developed on the basis of ROS 6 - a software platform with its own independent intellectual property rights, SPS-S58XX Series provides high-performance L2/L3/L4 wire speed switching capacity by integrating services such as IPv6, MPLS VPN, network security, flow analysis, virtualization, with high reliable techniques including continuous forwarding, graceful restarting and loop network protection, all which works efficiency withing the SPS-S58XX Series fabric for guaranteed maximum runtime.
SPS-S58XX Series supports the "GreenTouch" architecture and "Smart@CHIP". Its power consumption is lower than 200W.
SPS-S58XX Series has 4 models: SPS-S5828, SPS-S5832, SPS-S5864 and SPS-S5864H.
Product Characteristics
Rich Data Center Services
BVSS (Virtual Switch System)
SPS-S58XX Series supports BVSS, which can virtualize multiple physical devices into a single logical element. The virtualized system is superior to the independent physical device in performance, reliability, flexibility and management.
- Doubled Performance: The virtualized system makes the best use of each link in the device and avoids blocking of STP to the links.
- High-reliability: Based on the advanced distributed processing technique and the efficient function of cross-physical device link aggregation, the SPS-S58XX Series provides non-stop layer-3 routing forwarding and avoids single points of failure.
- Flexibility: The virtual cluster function of the SPS-S58XX allows the distance of a cluster system to expand over up to 80KM, breaking the geographic restrictions of traditional cluster techniques.
- Easy Management: The whole virtual system realizes single IP unified management and simplifies the management of network device and network topology.
Large Layer-2 Network Technique
SPS-S58XX Series adopts large layer-2 network technique which supports TRILL/SPB protocol. With this technique, the network structure has become simplified and compact, which better enables access for data center, large-scale servers.
Unified Architecture
SPS-S58XX Series supports FCoE (FC over Ethernet) technique, which solves the problem of discrepancy between LAN network and FC storage network and integrates computing, data and storage networking.
SDN
SPS-S58XX Series supports SDN (Software Defined Network), which can realize network virtualization and centralized management.
Security+
- Equipment-level security: The advanced hardware infrastructure design realizes the level-based packet schedule and packet protection, prevents DoS-/TCP- related SYN Flood, UDP Flood, Broadcast Storm or large traffic attacks, and supports level-based command line protection, endowing different levels of users with different management permissions.
- Perfect security authentication mechanisms: IEEE 802.1x, Radius and BDTacacs+.
- SPS-S58XX series supports storm/multicast/unicast limits, ensuring normal running conditions of the equipment when deployed in harsh network conditions.
- SPS-S58XX supports perfect ring detection mechanisms, ensuring long-term network performance stability.
- SPS-S58XX series supports port isolation within the same VLAN, DHCP-Snooping, and IP+MAC+Port binding.
Versatile IPv6 Solution
- SPS-S58XX Series supports the IPv6 protocol suite, IPv6 neighbor discovery, ICMPv6, path MTU discovery, DHCPv6, etc.;
- SPS-S58XX Series supports Ping, Traceroute, Telnet, SSH, ACL based on IPv6;
- SPS-S58XX Series supports MLD, MLD Snooping, IPv6 static routing, RIPng, OSPFv3 and BGP4+, etc.; Supports IPv6 tunnel: manual tunnel, automatic tunnel, GRE tunnel, 6to4 tunnel, ISATAP;
- SPS-S58XX Series supports IPv4 transiting to IPv6: IPv6 manual tunnel, automatic tunnel, 6to4 tunnel, ISATAP tunnel.
Data Center Level High-Reliability
- SPS-S58XX Series adopts HPS (Hitless Protection System). The key components of the SPS-S58XX Series such as the power system and the fan system supports redundancy in design. All system modules support hot-swap and seamless switching without need of manual intervention.
- SPS-S58XX Series supports redundancy protection mechanisms such as STP/RSTP/MSTP protocol, VRRP protocol, ring network protection, dual uplink active/standby link protection and LACP link aggregation.
- SPS-S58XX Series supports ISSU (In-Service Software Upgrade), guaranteeing non-stop forwarding of service data while the system is upgrading.
- SPS-S58XX Series supports BFD and realizes fault detection and service recovery in seconds through linking with layer-2 or layer-3 protocol.
- SPS-S58XX Series has perfect Ethernet OAM, 802.3ah, 802.1ag and ITU-Y.1731 which can monitor the network operating state in real time and rapidly detect and locate the malfunction.
- High Reliability (99.999%): The MTTR of the SPS-S58XX Series is 50ms, satisfying the requirement for reliable delivery of carrier-level service.
Specification
VLAN
- 4K Active VLAN, QinQ & Selective QinQ, GVRP, Private VLAN
MPLS
- Multi-VRF
Spanning Tree
- 802.1D (STP), 802.1W (RSTP) and 802.1S (MSTP)
- BPDU guard, root guard and loopback guard
QoS
- CAR, HQoS, MAC/IP/TCP/UDP/VLAN/COS/DSCP/TOS based QoS, 802.1P/DSCP priority re-labeling, SP, WRR and "SP+WRR", Tail-Drop, WRED, flow monitoring and traffic shaping, URPF, LLDP
Reliability
- Static/LACP link aggregation, Interface backup
- BVSS virtual-stacking
- EAPS and ERPS
- ISSU
- VRRP
- 1+1 power backup
Multicast
- PIM-SM, PIM-DM, IGMPv1/v2/v3, IGMP Snooping, IGMP Fast Leave, MVR, IGMP filter
IPv4
- Static routing, RIPv1/v2, OSPF, BGP, PBR, ECMP
- BFD for OSPF, BGP
IPv6
- ICMPv6, DHCPv6, ACLv6 and IPv6 Telnet
- IPv6 neighbor discovery, Path MTU discovery
- MLD V1/V2, MLD snooping
- IPv6 Static Routing, RIPng, OSPFv3, BGP4+
- Manual tunnel, ISATAP tunnel, 6to4 tunnel
Management
- Console, Telnet, SSH v1/2, HTTP, HTTPS, SNMP v1/v2/v3, RMON
- TFTP, FTP, SFTP
- NTP, SPAN, RSPAN
Security
- Port isolation, Port security, "IP+MAC+port" binding, MAC sticky
- DHCP Snooping and option 82, DAI & IP source guard, PPPoE+
- IEEE 802.1x, Radius and BDTacacs+
- L2/L3/L4 ACL flow identification and filtration, Anti-attack from DDoS, TCP's SYN Flood, UDP Flood, etc. Broadcast/multicast/unknown unicast storm-control
- MD5, SHA-256, RSA-1024, AES256, etc.
Environment
- Operating temperature/humidity: 0℃~-50℃, 10%-90% non-condensing
- Storage temperature/humidity: -20℃~-70℃, 5%-95% non-condensing
Certification
- CE, FCC, ROHS
Hardware Specification
| Item | SPS-S5832 | SPS-S5864 | SPS-S5828 | SPS-S5864H |
|---|---|---|---|---|
| Interface | 4GE TX ports 24 10GE/GE SFP+ ports 2 40GE QSFP+ ports |
48 10GE/GE SFP+ ports 4 40GE QSFP+ ports |
24 10GE/GE SFP+ ports 4 100GE/40GE QSFP28 ports |
48 10GE/GE SFP+ ports 2 40GE QSFP+ ports 4 100GE/40GE QSFP28 ports |
| Console | 1 RJ45 console 1 MGMT |
1 RJ45 console 1 MGMT |
1 RJ45 console 1 MGMT |
1 RJ45 console 1 MGMT |
| Backplane | 648Gbps | 1280Gbps | 800Gbps | 1920Gbps |
| Forwarding rate | 486Mpps | 960Mpps | 600Mpps | 1440Mpps |
| Dimension (WxDxH) (mm) | 442x404x44 | 442x404x44 | 440x350x44 | 442x404x44 |
| Weight (KG) (empty) | 8.5 | 8.6 | 7.1 | 8.8 |
| Package Dimension (WxDxH) (mm) | 596x468x114 | 616x488x140 | 576x448x94 | 616x488x140 |
| Weight (KG) | 9.7 | 9.8 | 8.3 | 10 |
| Power consumption no-load | 81.5W | 94W | 45W | 102W |
| Power consumption full-load | 92W | 131.5W | 70W | 147W |
| Power supply (hot-swap) | AC: 100V-240V, 50Hz±10% 2 |
AC: 100V-240V, 50Hz±10% 2 |
AC: 100V-240V, 50Hz±10% 2 |
AC: 100V-240V, 50Hz±10% 2 |
| Power status monitoring | Support | Support | Support | Support |
| Total output (BTU/H=293W) | 313.99 | 448.81 | 238.91 | 501.71 |
| Fan number | 5 | 5 | 4 | 4 |
| Noise@25°C (dBA) | 55 | 55 | 57 | 57 |
| MTBF (H) | >100,000 | >100,000 | >100,000 | >100,000 |
| Forwarding mode | Store-forward | Store-forward | Store-forward | Store-forward |
| Bvss member | 4 | 4 | 4 | 4 |
| Bvss port | 10G/40G | 10G/40G | 10G/40G/100G | 10G/40G/100G |
| Flash (MB) | 32 | 32 | 32 | 64 |
| DRAM (MB) | 2048 | 2048 | 1024 | 512 |
| MAC | 128K | 128K | 32K | 64K |
| Jumbo frame | 9K | 9K | 9K | 9K |
| Routing table IPv4 | 16K | 16K | 16K | 8K |
| Routing table IPv6 | 8K | 8K | 12K | 4K |
| VRF group | 24 | 24 | 24 | 24 |
| Multicast group | 1K | 1K | 1K | 1K |
| ARP table IPv4 | 16K | 16K | 10K | 4K |
| ARP table IPv6 | 8K | 8K | 10K | 4K |
| Link Aggregation | 8 groups/8 ports | 8 groups/8 ports | 8 groups/8 ports | 8 groups/8 ports |
| Total SVI | 1K | 1K | 1K | 1K |
Ordering Information
| Part Number | Product Description |
|---|---|
| SPS-S58XX | SPS-S58XX series switches |
| SPS-S5832 | Ethernet routing switch with 24 10GE ports, 2 40GE ports and 4 GE ports (1 console port, 1 out-band port, 24 10GE/GE SFP+ ports, 2 40GE QSFP+ ports (each 40GE port can expand to 4 10GE ports); 2 power slots with 2 hot-swap AC220V power supplies; 5 fan slots, including 5 fans; 1U, 19-inch rack-mounted installation) |
| SPS-S5864 | Ethernet routing switch with 48 10GE ports, 4 40GE ports (1 console port, 1 out-band port, 1 USB2.0, 48 10GE/GE SFP+ ports, 4 40GE QSFP+ ports (each 40GE port can expand to 4 10GE ports); 2 power slots with 2 hot-swap AC220V power supplies; 5 fan slots, including 5 fans; 1U, 19-inch rack-mounted installation) |
| SPS-S5828 | Ethernet routing switch with 24 10GE ports, 4 100GE ports (1 console port, 1 out-band port, 24 10GE/GE SFP+ ports, 4 100GE/40GE QSFP28 ports (can expand to 4 10GE ports); 2 power slots with 2 hot-swap AC220V power supplies; 4 fan slots, including 4 fans; 1U, 19-inch rack-mounted installation) |
| SPS-S5864H | Ethernet routing switch with 48 10GE ports, 2 40GE ports and 4 100GE ports (1 console port, 1 out-band port, 48 10GE/GE SFP+ ports, 2 40GE QSFP+ ports, 4 100GE (can expand to 4 10GE ports), 2 power slots with 2 hot-swap AC220V power supplies; 4 fan slots, including 4 fans; 1U, 19-inch rack-mounted installation) |
Optical Modules
40GE Optical Modules
| Model | Description |
|---|---|
| SPT-QSFP+MSR4 | 40G QSFP+ optical module (100m/OM3 150m/OM4, 850nm, MPO/MTP, DDM) |
| SPT-QSFP+LR4 | 40G QSFP+ optical module (10Km, 1310nm, LC, DDM) |
10GE Optical Modules
| Model | Description |
|---|---|
| SPT-PTTG-RS1 | 10GE SFP+ to RJ45 module |
| SPT-P85TG-SR | 10GE SFP+ multi-mode (300m, 850nm, LC) |
| SPT-P13TG-LR | 10GE SFP+ single-mode (10Km, 1310nm, LC, DDM) |
| SPT-P13TG-LRS | 10GE SFP+ single-mode (20Km, 1310nm, LC, DDM) |
| SPT-P55TG-ER | 10GE SFP+ single-mode (40Km, 1550nm, LC, DDM) |
| SPT-P55TG-ZR | 10GE SFP+ single-mode (80Km, 1550nm, LC, DDM) |
| SPT-PB2733TG-L10 | 10GE SFP+ single-mode, single-fiber (10Km, TX1270/RX1330, LC, DDM) |
| SPT-PB3327TG-L10 | 10GE SFP+ single-mode, single-fiber (10Km, TX1330/RX1270, LC, DDM) |
| SPT-PB2733TG-L20 | 10GE SFP+ single-mode, single-fiber (20Km, TX1270/RX1330, LC, DDM) |
| SPT-PB3327TG-L20 | 10GE SFP+ single-mode, single-fiber (20Km, TX1330/RX1270, LC, DDM) |
| SPT-PB2733TG-L40 | 10GE SFP+ single-mode, single-fiber (40Km, TX1270/RX1330, LC, DDM) |
| SPT-PB3327TG-L40 | 10GE SFP+ single-mode, single-fiber (40Km, TX1330/RX1270, LC, DDM) |
GE Optical Modules
| Model | Description |
|---|---|
| SPT-PTT2-RS1 | GE SFP to RJ45 module |
| SPT-P851G-S5D | GE SFP multi-mode (500m, 850nm, LC, DDM) |
| SPT-P131G-10D | GE SFP single-mode (10Km, 1310nm, LC, DDM) |
| SPT-P131G-20D | GE SFP single-mode (20Km, 1310nm, LC, DDM) |
| SPT-P131G-40D | GE SFP single-mode (40Km, 1310nm, LC, DDM) |
| SPT-P551G-80D | GE SFP single-mode (80Km, 1550nm, LC, DDM) |
| SPT-P551G-120D | GE SFP single-mode (120Km, 1550nm, LC, DDM) |
| SPT-PB351G-L10D | GE SFP single-mode, single core bidirectional (10Km, TX1310/RX1550, LC, DDM) |
| SPT-PB531G-L10D | GE SFP single-mode, single core bidirectional (10Km, TX1550/RX1310, LC, DDM) |
| SPT-PB351G-L20D | GE SFP single-mode, single core bidirectional (20Km, TX1310/RX1550, LC, DDM) |
| SPT-PB531G-L20D | GE SFP single-mode, single core bidirectional (20Km, TX1550/RX1310, LC, DDM) |
| SPT-PB351G-L40D | GE SFP single-mode, single core bidirectional (40Km, TX1310/RX1550, LC, DDM) |
| SPT-PB531G-L40D | GE SFP single-mode, single core bidirectional (40Km, TX1550/RX1310, LC, DDM) |
