Product Overview
SPS-M2G8G4 Layer 2 Managed Industrial PoE Ethernet Switch is a high-performance industrial-grade network device that provides 8x10/100/1000Base-TX RJ45 ports and 4x100/1000Base-FX SFP ports with PoE power supply. This switch supports multiple network protocols and management functions, suitable for various industrial environments and outdoor applications.
Features
- 8x10/100/1000Base-TX RJ45 ports, 4x100/1000Base-FX SFP ports
- Supports Auto-MDIX and full/half duplex auto-negotiation mode
- Supports 10K bytes jumbo frame, compatible with various extended protocols
- 8K MAC address table
- Supports IEEE 802.3az Energy Efficient Ethernet technology
- 8KV electric surge protection, easy to use in outdoor environment
- Complete status indicators, working state at a glance
- Power input polarity protection design, no worry about wrong operation
- Rugged metal housing, IP40 protection, fan-less design
- Installation method: DIN Rail/Wall mounting
Supported Standards
| Standard | Description |
|---|
| IEEE 802.3 | 10Base-T 10Mbit/s Ethernet |
| IEEE 802.3u | 100Base-TX/100Base-FX Fast Ethernet |
| IEEE 802.3ab | 1000Base-T Gigabit Ethernet over twisted pair |
| IEEE 802.3z | 1000Base-X Gigabit Ethernet over Fiber-Optic |
| IEEE 802.3x | Flow control for Full Duplex |
| IEEE 802.3az | EEE (Energy Efficient Ethernet) |
| IEEE 802.3ah | EFM-OAM |
| IEEE 802.1Q | Virtual LANs (VLAN) |
| IEEE 802.1X | Port based and MAC based Network Access Control Authentication |
| IEEE 802.3af | PoE (Power over Ethernet) |
| IEEE 802.3at | PoE+ (Power over Ethernet enhancements) |
| IEEE 802.1d | STP (Spanning Tree Protocol) |
| IEEE 802.1w | RSTP (Rapid Spanning Tree Protocol) |
| IEEE 802.1s | MSTP (Multiple Spanning Tree Protocol) |
| ITU-T G.8032/Y.1344 | ERPS (Ethernet Ring Protection Switching) |
| IEEE 802.3ac | Max frame size extended to 1522 Bytes |
| IEEE 802.3ad | Link aggregation for parallel links with LACP (Link Aggregation Control Protocol) |
| Standard | Description |
|---|
| IEEE 802.1ad | Q-in-Q VLAN stacking |
| IEEE 802.1p | LAN Layer 2 QoS/CoS Protocol for Traffic Prioritization |
| IEEE 802.1ab | Link Layer Discovery Protocol (LLDP) |
Switching Property
| Parameter | Specification |
|---|
| Packet Buffer | 4Mbits |
| Jumbo Frame | 10Kbytes |
| MAC Address Table | 8K |
| Flow Control | IEEE 802.3x flow control for Full Duplex mode, Back pressure for Half Duplex mode |
| Data Processing | Store and Forward (Full/Half Duplex mode) |
| Switch Architecture | Delay time: <7μs; Back-plane bandwidth: 56Gbps/non-blocking; Packet forwarding rate: 17.856Mpps |
Network Interfaces
| Parameter | Specification |
|---|
| RJ45 Port | 10/100/1000Base-TX, supports auto negotiation speed, auto MDI/MDI-X function; Transmission Distance: 100m (using standard CAT5/CAT5e cable) |
| SFP Port | 100/1000Base-FX, supports 100/1000M dual speed with DDMI; Transmission Distance: depends on SFP Module |
| Console | RS-232 (RJ-45) |
Power Supply
| Parameter | Specification |
|---|
| Redundant Power Input | DC 9-56V |
| Removable Terminal Block | Provide 2 redundant power alarm relay contact (optional) 6Pin |
| Alarm Relay Contact | Relay outputs with current carrying capacity of 1A@24VDC |
| Overload Current Protection | Support |
| Reverse Polarity Protection | Support |
| Power Consumption | Full-load <12W (none-PoE) |
PoE
| Parameter | Specification |
|---|
| PoE Standard | IEEE 802.3af PoE / IEEE 802.3at PoE+ |
| PoE Power Budget | Max. 30W per port, total 240W |
| RJ-45 Pin Assignment | Positive (V+): RJ-45 pin 1,2; Negative (V-): RJ-45 pin 3,6 |
| PoE Working Voltage | DC 48-52V |
LED Indicator
| Indicator | Status |
|---|
| Power | Connect-always |
| RJ45 | Link/Act: connect-always; data exchange-twinkle |
| SFP | Link/Act: connect-always; data exchange-twinkle |
Mechanical Specs
| Parameter | Specification |
|---|
| Material | IP40 aluminum housing |
| Cooling | Passive cooling, fan-less design |
| Dimension | 138mm x 108mm x 49mm |
| Installation | DIN Rail mounting and wall mounting |
| Weight | 650g |
Working Environment
| Parameter | Specification |
|---|
| Operating Temperature | -40℃~75℃ |
| Operating Humidity | 5%~90% non-condensing |
| Storage Temperature | -40℃~85℃ |
Guarantee
| Parameter | Specification |
|---|
| MTBF | 500000 Hours |
| Warranty | 5-year warranty, lifetime maintenance |
Certification Standard
| Certification | Standard |
|---|
| EMC | CE (EN55032 EN55035) |
| EMI | FCC Part 15 Subpart B |
| EMS | EN61000-4-2 (ESD) EN61000-4-3 (RS) EN61000-4-4 (EFT) EN61000-4-5 (Surge) EN61000-4-6 (CS) EN61000-4-8 (PFMF) EN61000-4-11 |
| Safety | CE (EN60950-1) |
| Surge Protection | 8KV for PoE RJ-45 and SFP ports |
| Shock | IEC 60068-2-27 |
| Free fall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
Management Software
Redundant Network
- Support STP/RSTP
- Support EAPSERPS (Recovery time <20ms)
Routing
- Support Static Routing (Optional)
Multicast
- Support IGMP snooping
- Support GMRP
VLAN
- Support IEEE 802.1Q 4K VLAN
- Support Q-in-Q
Link Aggregation
- Support Manual Aggregation
- Support Static/Dynamic LACP protocols
QoS
- Support CoS DSCP 8 queues
- Support WRR SPWF Q scheduling mode policy QoS
PoE Management
- Support total power supply control
- Support PoE On/Off
- Support Power feeding priority
- Support PoE timing
Diagnostic
- Support Port Mirroring
- Support Syslog
Maintenance
- Support Ping command etc.
Management Mode
Alarm Management
- Support 1 way relay alarm output
- Support RMON management TRAP alarm
Security
- Support DHCP snooping Option 82
- Support 802.1X security access
- Support user hierarchical management
- Support ACL access control list
- Support port-based MAC filtering/binding MAC white-list
Port Management
- Support port enabled and disabled
- Support port speed setting
- Support 802.3x flow control
L3 Management
Login Information
| Parameter | Value |
|---|
| Login IP | 192.168.1.6 |
| UserName/Password | admin/admin |
Dimensions

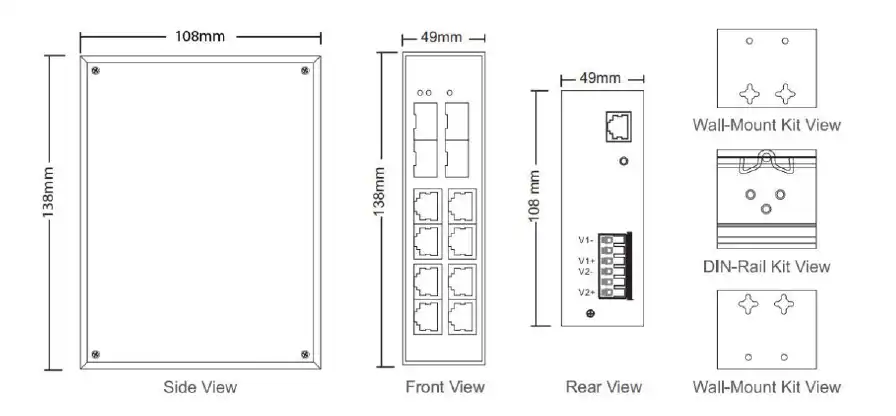

Dimensions: 138mm x 108mm x 49mm
Application

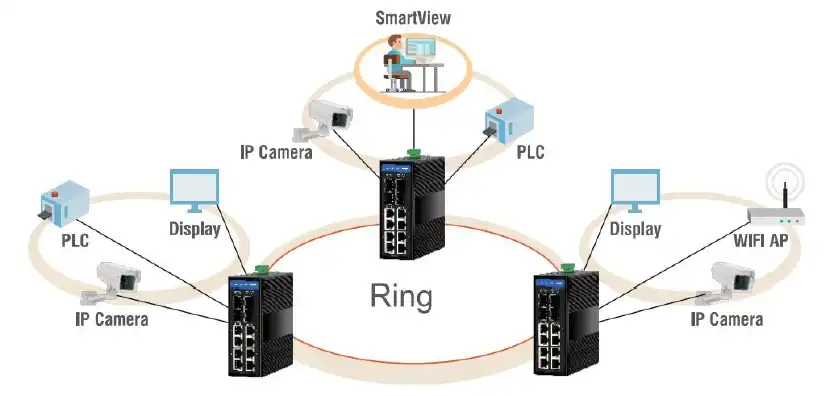

SPS-M2G8G4 Industrial PoE Ethernet Switch is suitable for various industrial environments, including smart manufacturing, traffic monitoring, energy management, outdoor monitoring and other scenarios. This switch supports PoE power supply, which can provide power for network equipment, simplify wiring, and reduce installation costs.
Ordering Information
| Part Number | Product Description |
|---|
| SPS-M2G8G4 | Layer 2 Managed Industrial POE Ethernet Switch 8x10/100/1000Base-TX + 4x100/1000Base-FX SFP External Power Supply 220VAC |
Contact Us
Note: If you need more customized services, please contact us.
E-mail: info@sopto.com.cn
Web: http://www.sopto.com.cn
