SPOA-51EYAXU Series High Power Er/Yb Doped Fiber Amplifier

SPOA-51EYAXU Series High Power Er/Yb Doped Fiber Amplifier

Performance Characteristics

• Adopts world top brand pump lasers and the OFS fiber of United States advanced LG switch low-power circuit design greatly reducing the overall power consumption and heat.
• Perfect APC ACC ATC control users use in different networks good ventilation design and temperature-controlled fan ensure the long life and high reliability of PUMP laser.
• Using digital control chip remote or local output power adjustable.
• Excellent protection circuit design with light detection optical return loss monitoring. Great protection of lasers and light path safety.
• Built-in low-noise preamplifier eliminates the need for cascaded EDFA allowing input light to be as low as -5dBm greatly reducing CNR and MER degradation.
• Demultiplexer for 1310/1490/1270/1577/1550nm GEPON and XGSPON. It greatly facilitates network applications with PON. Low noise figure (type ≤ 5.0dB Max ≤ 6.0dB).
• The total output optical power is optional: 2-10W(27-41dBm).
• The front panel can be removed and replaced flexibly according to the number of output ports; Can add a built-in optical switch module to facilitate the expansion of the device function; Cooling fan supports online replacement.
• The front panel LCD provides the operating parameters and alarms of the entire unit. RJ45 provides serial communication and SNMP network management interface; Carrier-grade dual power hot backup CPU assignable power.
• Can add OSW、optical transmitter、GSM module convenient expansion of equipment functions.

Applications

The 51EYAXX series high power amplifier is a high power multi-output optical fiber amplifier with a gain spectrum bandwidth of 1535~1565nm. It is mainly designed for CATV or 1~8 continuous strip channels (ITU wavelength) applications. It provides a flexible low-cost solution for large-scale FTTH coverage of CATV systems in large and medium-sized cities.

51EYAXX can achieve single-wavelength cable TV transmission CWDM single-fiber three-wave flat-gain type DWDM; its reliable and excellent performance ratio between the main application of FTTH FTTB DBS MMDS FTTX PON is to build CATV large Medium-sized optical fiber transmission network is an important equipment.

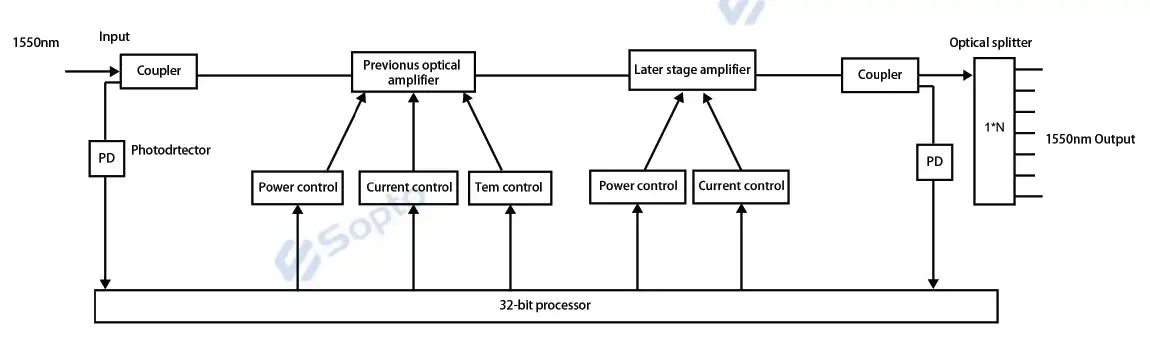

Block Diagram

Limit Parameters

Technical Parameters

Note: If you need more customized services, please contact us.
