Product Overview
XGS-PON&GPON OLT SPO-XGS1012-B1 fully complies with ITU-T G.9807.1 standard. This 1U rack-mounted device features 2 GE uplink ports, 1 10GE uplink port, and 1 XGS-PON&GPON (Combo PON) port. The XGS-PON&GPON port supports a splitting ratio of 1:128, and the system can support up to 128 terminal connections.
This product meets the requirements for both device performance and compact server room size, offering high performance in a compact form factor that is convenient, flexible to use, and easy to deploy. Furthermore, from the perspective of access networks and enterprise networks, this product meets the needs for enhanced network performance, improved reliability, and reduced power consumption. It is suitable for triple-play broadcast television networks, FTTP (Fiber to the Premise), video surveillance networks, enterprise LANs, IoT, and other network applications, delivering exceptional price-to-performance ratio.
Key Features
- Compliant with ITU-T G.9807.1 standard and Chinese Communication Industry standards
- Supports OMCI protocol
- 1U height, 1 PON port XGS-PON&GPON OLT with compact Pizza-Box design
- Automatic fan speed adjustment
- BBU (Backup Battery Unit) optional
- Layer 2 switching functionality
- OLT equipped with powerful Layer 2 full wire-speed switching, fully supporting Layer 2 protocols. Supports various Layer 2 functions including TRUNK, VLAN, LACP, rate limiting, port isolation, queue technology, flow control technology, ACL, and more, providing technical guarantee for multi-service integration
- QoS guarantee
- XGS-PON&GPON products feature comprehensive DBA (Dynamic Bandwidth Allocation) with excellent QoS capabilities, meeting diverse QoS requirements for different service flows in terms of latency, jitter, and packet loss rate
- Easy-to-use management system
- Supports CLI, WEB, SNMP, TELNET, SSH management methods. Meets OMCI standard through OMCI channel protocol, enabling service management including ONT function parameter settings, T-CONT service lines and quantity configuration, QoS parameter configuration, information requests, performance statistics, automatic reporting of system events, ONT configuration from OLT, fault diagnosis, and performance and security management
Product Interface

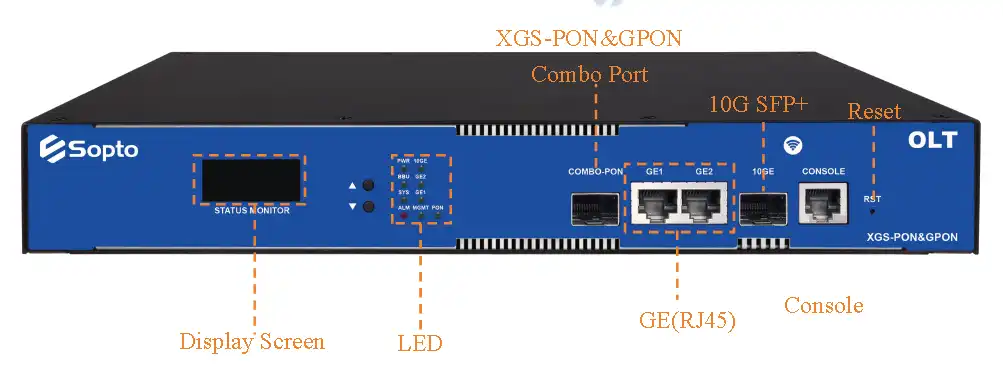

The front panel provides the following interfaces:
- XGS-PON&GPON Combo Port
- 10G SFP+ Port
- Reset Button
- Console Management Port
- GE (RJ45) Port
- LED Display Screen
Product Specifications
Mechanical Specifications
| Parameter | Specification |
|---|---|
| Dimensions | 312.8mm(L)×197mm(W)×44mm(H) |
| Weight | 1.95Kg |
Hardware Specifications
| Parameter | Specification |
|---|---|
| GE Port | 2×10/100/1000M auto-negotiation Ethernet ports |
| Uplink Port - 10G Port | 1×SFP+ interface |
| PON Port Quantity | 1 |
| PON Port Physical Interface | SFP slot |
| Max Splitting Ratio | 1:128 |
| Management Port | 1×CONSOLE local management port |
| Transmission Distance | 20KM |
| Port Rate | XGS-PON: Downstream 10Gbps, Upstream 10Gbps GPON: Downstream 2.5Gbps, Upstream 1.25Gbps |
| Wavelength | XGS-PON: Transmitting 1577nm, Receiving 1270nm GPON: Transmitting 1490nm, Receiving 1310nm |
| Interface Type | SC/UPC |
| Fiber Type | 9/125μm SMF (Single Mode Fiber) |
XGS-PON&GPON COMBO PON Port Optical Parameters
| Parameter | Specification |
|---|---|
| Optical Transmitting Power | 5~8dBm (9.953G) 3~7dBm (2.488G) |
| Receiving Sensitivity | ≥-29dBm (9.953G) ≥-30.5dBm (2.488G) ≥-30dBm (1.244G) |
| Saturation Optical Power | ≤-8dBm (9.953G) ≤-10dBm (2.488G) ≤-12dBm (1.244G) |
Network Management Methods
Supports CLI, SNMP, TELNET, SSH, WEB management methods.
Supports device logs, device upgrades, device management, status monitoring, configuration management, and user management.
Business Capabilities
- Layer 2 switching configuration management: Port management, VLAN, RSTP, IGMP, ACL, QoS, etc.
- PON function configuration management: OLT authentication, DBA templates, service templates, line templates, etc.
- Layer 3 functionality: Supports static routing, DHCP Relay, and VLANIF configuration
Backplane Bandwidth
44G
Power Supply Specifications
| Parameter | Specification |
|---|---|
| AC Power | 100V~240V, 47~63Hz |
| DC Power | External adapter mode 12V/2.5A |
| DC Voltage Range | 11V～14V |
BBU (Backup Battery Unit)
Function: When mains power is cut off, it can automatically switch to backup power supply; when mains power is restored, it automatically switches back to mains power and charges the backup battery.
Maximum Power Consumption
<14W
Environmental Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -15~50℃ |
| Storage Temperature | -40~85℃ |
| Ambient Humidity | 5~90% (Non-condensing) |
Ordering Information
| Product Model | Description |
|---|---|
| SPO-XGS1012-B1 | OLT Standalone XGS-PON&GPON (Combo PON ports) + 2 GE uplink ports + 1 10GE uplink port (SFP+), 100~240VAC power supply |
