Product Overview
The intelligent outdoor communication cabinet is suitable for outdoor environments, offering all-weather outdoor electrical protection. By installing various business modules, it enables the convergence and transmission of multiple services. The shell is made from high-quality cold-rolled steel plate (with options for galvanized or stainless steel), providing rainproof, dustproof, ventilated, heat-dissipating, and corrosion resistance properties. The pole-mount structure design is convenient for quick installation. The built-in environmental parameter acquisition control module adjusts the internal fan to dissipate heat based on the temperature inside the box. The control module also triggers an audible alarm when the box door is illegally opened. A water sensor can detect the water level inside the box and issue an alarm, while a smoke sensor can detect the smoke level inside the box and trigger an alarm if needed. An optional 4G+GPS module allows for location tracking with alarms sent via the web if the box is illegally moved. The power redundancy backup design ensures the long-term reliability of the equipment. With an optional battery power supply, the system will automatically switch to battery power if mains power fails. The intelligent field communication box is equipped with web and CMS management functionality for easy monitoring and control.
Product Specification
1.1 OLT Module Specification
Refer to the OLT module SPO-GC8Y data sheet
1.2 EYDFA Module Specification
Refer to the EYDFA module SPOA-51EYAC-16*23Y data-sheet
1.3 Environmental Parameter Acquisition Control Module Specifications
| Name | Parameter |
|---|---|
| Fan start temperature | 45°C |
| Heater start temperature | -5°C |
1.4 Lights Status and Results
| Name | Light ON | Light Flashing | Light OFF | Notes |
|---|---|---|---|---|
| SYS | System is normal | System is unnormal | / | Green light |
| WIFI | WIFI function open | Data transmitter | WIFI function off | Green light |
| ETH | ETH connect normal | Data transmitter | ETH unconnected | Green light |
| Battery over discharge protection | Battery voltage is normal | / | Battery Low | Green light |
| CHARGING | Battery is not charging | Battery is charging | / | Green light |
| CHARGED | Battery is fully charged | Battery is not fully charged | / | Green light |
| 14.4V Charging | 14.4V charge mode is selected | 14.4V charge mode is unselected | / | Green light |
| 12.6V Charging | 12.6V charge mode is selected | 12.6V charge mode is unselected | / | Green light |
| FAN1 | Fan1 is working | / | Fan1 is unworking | Green light |
| FAN2 | Fan2 is working | / | Fan2 is unworking | Green light |
| RTU-100 module POWER | RTU-100 module power on | / | RTU-100 module power off | Green light |
| ALARM | With alarms | / | Without alarms | Red light |
1.5 Operating Specifications of Intelligent Field Communication Box
| Name | MIN | Typ. | MAX | Unit |
|---|---|---|---|---|
| Store temperature | -40 | / | 85 | ℃ |
| Storage humidity | 5 | / | 95 | % |
| Operate temperature (with heater) | -25 | / | 65 | ℃ |
| Operate temperature (no heater) | 0 | / | 65 | ℃ |
| Work humidity (non-condensing) | 10 | / | 90 | % |
| Power consumption (no heater) | N/A | 120 | / | W |
| AC input voltage | 100 | 220V | 240 | V |

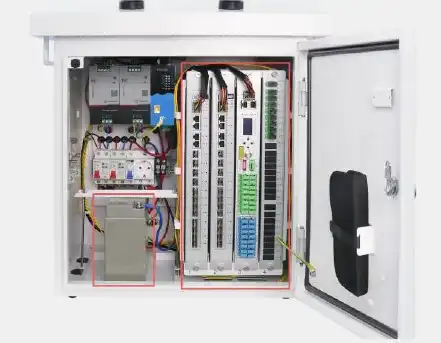

The red box contains optional features.
Product Hardware Design Specification
2.1 Hardware Principle Block Diagram

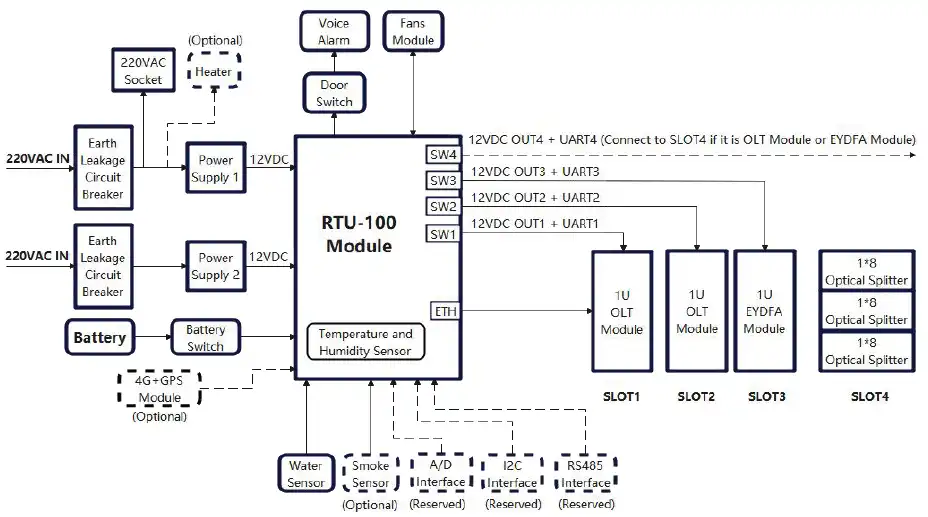

This intelligent field communication box is mainly composed of the following modules: OLT module, EYDFA module, power supply module, cabinet environment collection and control module (RTU-100 Module), among which the cabinet environment collection and control module includes power redundancy backup, power-off battery life control, environment collection control, etc.

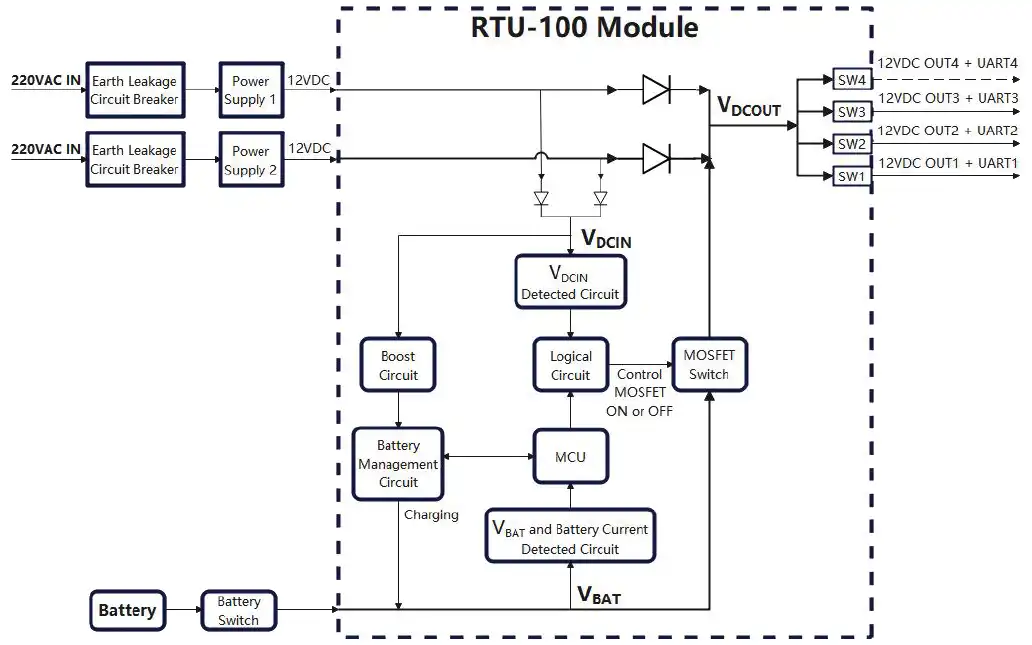

2.2 Principle Block Diagram of Battery Charging, Switching and Over Discharge Protection
2.2.1 Battery Charging:
When 220VAC mains power is connected, the Logical Circuit controls the MOSFET to turn OFF and the battery is in charging mode. The VDCOUT is provided by Power Supply 1 and Power Supply 2.
2.2.2 Battery Switching:
When 220VAC mains power is not connected, the Logical Circuit controls the MOSFET to turn ON and the battery is in discharge mode. The VDCOUT is provided by Battery.
2.2.3 Battery Over Discharge Protection:
When 220VAC mains power is not connected, the Logical Circuit controls the MOSFET to turn ON and the battery is in discharge mode. And when the battery voltage is below the over discharge protection threshold, the MCU will send a signal to the Logical Circuit to forcibly turn OFF the MOSFET. The VDCOUT is equal to zero.
2.3 Main Configuration of Intelligent Field Communication Box
| Name | Quantity | Remark |
|---|---|---|
| OLT module | Max 2 (with EYDFA module) Max 3 (without EYDFA module) Max 4 (without EYDFA module and Optical Splitter module) |
Individually packaged |
| EYDFA module | Max 1 | Individually packaged |
| Optical Splitter Module | Max 3 | One 1*8 port module is configured by default |
| Earth Leakage Circuit Breaker | 2 | |
| Switching power supply | 2 | |
| 220VAC Socket | 1 | |
| Control Module | 1 | RTU-100 Module |
| Fan | 2 | |
| Water Sensor | 1 | |
| Smoke Sensor | 1 | Optional |
| Battery (28AH) | 1 | Optional |
| 4G+GPS Module | 1 | Optional |
| Heater (45W) | 1 | Optional |
Ordering Information
| Model No. | Description |
|---|---|
| SPO-GOC24Y | Outdoor Intelligent Field Communication Cabinet. An optional 4G+GPS module allows for location tracking with alarms sent via the web if the box is illegally moved. |
Contact Us
Note: If you need more customized services, please contact us.
