SPM-EEM2XT2X-PXT 10/100/1000Mbps Managed Industrial POE Fiber Switch
Product Overview

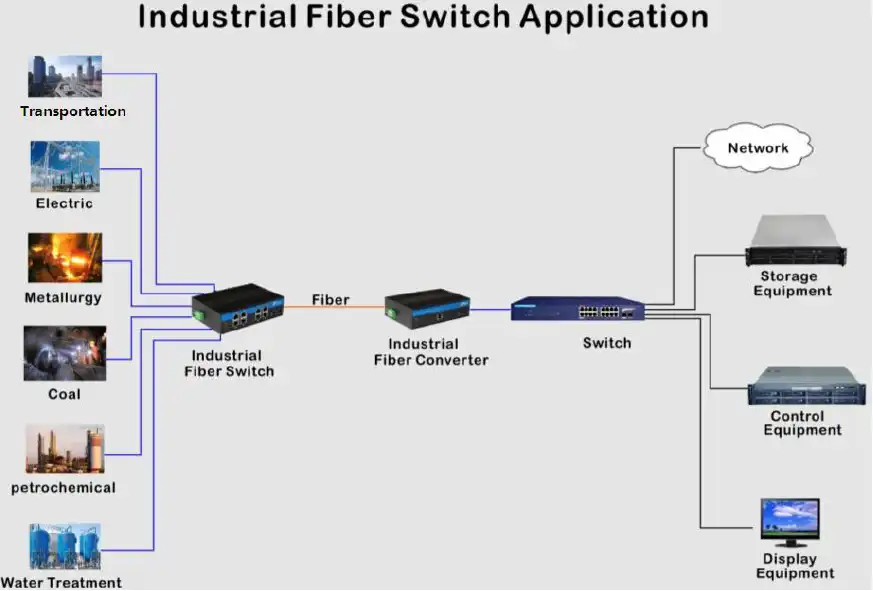

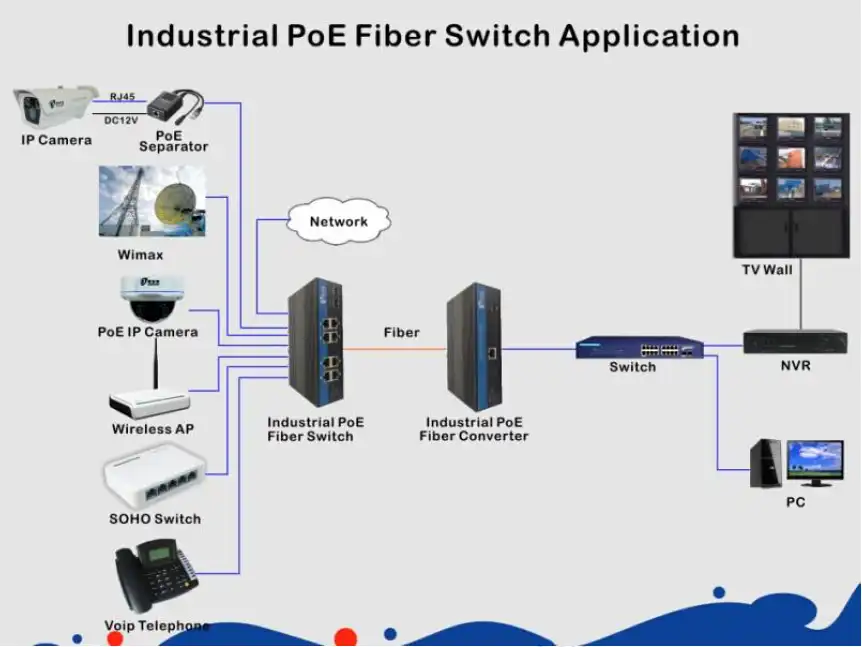

The SPM-EEM2XT2X-PXT is a 10/100/1000Mbps Managed Industrial POE Fiber Switch, providing 2 Gigabit SFP ports and 4~8 10/100/1000M RJ45 ports, supporting POE power supply, with corrugated metal shell, IP40 protection rating, operating temperature from -40°C to +85°C, suitable for industrial automation, intelligent transportation, rail transit and other harsh environments.
Product Features
- 2x1000Mbps SFP ports
- 4~8x10/100/1000M UTP RJ45 ports (Support MDI/MDIX auto-sensing)
- Managed switch with multiple management functions
- POE power supply, single port output power 15.4W
- Store and forward transmission mode
- Non-blocking switching architecture
- Wide voltage input DC12-36V
- Reverse polarity protection
- Operating temperature -40°C to +85°C
- IP40 protection rating
- DIN rail mounting
- Corrugated metal shell
Product Specifications
| Parameter | Specification |
|---|---|
| Product Name | 10/100/1000Mbps Managed Industrial POE Fiber Switch (2F+XTP) |
| Model | SPM-EEM2XT2X-PXT |
| Port | 2x1000Mbps SFP ports |
| SM: 1310nm/1550nm, 20Km | |
| 1490nm/1550nm, 40~120Km | |
| MM: 1310nm, 2Km | |
| UTP Port | 4~8x10/100/1000M UTP RJ45 (Support MDI/MDIX auto-sensing) |
| Switching Features | Transmission mode: Store and forward |
| System bandwidth: | |
| 2SFPs+4UTPs: 12Gbps | |
| 2SFPs+6UTPs: 16Gbps | |
| 2SFPs+8UTPs: 20Gbps (non-traffic jam) | |
| Network Media | 10BASE-T: CAT3 CAT4 CAT5 unshielded twisted pair (≤100m) |
| 100/1000BASE-TX: CAT5 or above shielded twisted pair (≤100m) | |
| SFP port, transmission distance: 20Km, 40Km, 60Km, 80Km, 100Km | |
| LEDs | Power, network, fiber |
| Power Supply | Input voltage: DC12-36V |
| No-load power consumption: 5W | |
| Reverse polarity protection: Support | |
| POE power supply input voltage: 48V (max 53V) | |
| Single POE power supply output power: 15.4W | |
| (802.3at standard required special instructions) | |
| Environment | Working temperature: -40°C ~ 85°C |
| Storage temperature: -40°C ~ 85°C | |
| Working humidity: 10%~90%, non-condensing | |
| Storage humidity: 10%~95%, non-condensing | |
| EMI | FCC Part 15 Subpart B Class A |
| EN55022 Class A | |
| EMS | EN61000-4-2(ESD) Level 3, EN61000-4-3(RS) Level 3 |
| EN61000-4-4(EFT) Level 3, EN61000-4-5(Surge) Level 3, EN61000-4-6(CS) Level 3, EN61000-4-8 | |
| Traffic Control | NEMA-TS2 |
| Vibration | IEC60068-2-6 |
| Free Fall | IEC60068-2-32 |
| Shock | IEC60068-2-27 |
| Rail Traffic | EN50121-4 |
| Safety | CE Mark commercial |
| CE/LVD EN60950 | |
| Mechanical Information | Shell: Corrugated metal shell |
| Safety class: IP40 | |
| Dimension: 158x114.8x60mm | |
| Mounting method: DIN rail mounting | |
| Warranty | Replacement within 1 year; 5 years repairing |
Ordering Information
| Model | Description |
|---|---|
| SPM-EEM24T2X-PXT | Managed Gigabit Industrial POE Media Converter 4*10/100/1000Base-Tx to 2*SFP slot without SFP modules |
| SPM-EEM26T2X-PXT | Managed Gigabit Industrial POE Media Converter 6*10/100/1000Base-Tx to 2*SFP slot without SFP modules |
| SPM-EEM28T2X-PXT | Managed Gigabit Industrial POE Media Converter 8*10/100/1000Base-Tx to 2*SFP slot without SFP modules |
| SPM-ETM24T2X-PXT | Managed Gigabit Industrial POE Media Converter 4*10/100/1000Base-Tx to 2*SFP slot without SFP modules POE 802.3at standard |
| SPM-ETM26T2X-PXT | Managed Gigabit Industrial POE Media Converter 6*10/100/1000Base-Tx to 2*SFP slot without SFP modules POE 802.3at standard |
| SPM-ETM28T2X-PXT | Managed Gigabit Industrial POE Media Converter 8*10/100/1000Base-Tx to 2*SFP slot without SFP modules POE 802.3at standard |
