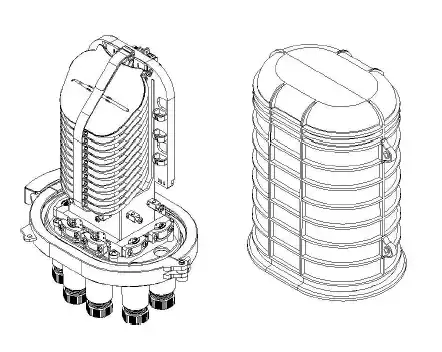

General Description
This type Dome Fiber optical closures provide with 8 fiber cable in-out round ports and the cable diameter is from Ф10-Ф18. It can be used in aerial duct and direct buried application. This product is made from the high-quality and with the mechanical sealing structure filled with the sealing material. It can be opened after sealing.
Features
- Impact resistant PP material, black color
- Mechanical sealing structure, IP68
- Max 12pcs fiber optic splice tray, max 288 fibers
- Can load max 18pcs SC Simplex adaptors
- Two splitter space for PLC 1*8 and 1*16
- 6 round cable port 18mm, 2 cable port 18mm, support cable entry without cutting
- Support wall mounted, pole mounted, aerial hanged, direct buried
Application
- Telecommunication subscriber loop
- Fiber to the home (FTTH)
- LAN/WAN
Technical Data
| Item | Parameter |
|---|---|
| External Size | 287.4（L）×200.6（W）×393.1（H）mm |
| Cable ports | 8 ports |
| Way to install | Aerial, duct and buried applications |
| Cable diameter | ∅10-∅18 |
| Capacity of splice tray | 24 single fiber |
| Max Capacity of Splice Tray | 288 |
| Work Temperature | -40℃ ~ +70℃ cold and heat resistance, electrical insulation, corrosion resistance. |
| Optical fiber winding radius | ≥40mm |
| Extra loss of fiber tray | ≤0.01dB |
| Lateral pressure-resistance | ≥2000N/10cm |
| Shock-resistance | ≥20N.m |
Accessory List
| Number | Item | Parameter | Quantity |
|---|---|---|---|
| 1 | Joint case main body | 1pc | |
| 2 | Cable tie | 3mm*120mm white | 12pcs |
| 3 | Plastic tube | Outside Ф4mm thickness 0.6mm plastic white 1m | 1pc |
| 4 | Inner hexagon spanner | S5 black | 1pc |
| 5 | Heat shrinkable protection sleeve | 60*2.6*1.0mm | As per using capacity |
Dimensions & Instruction

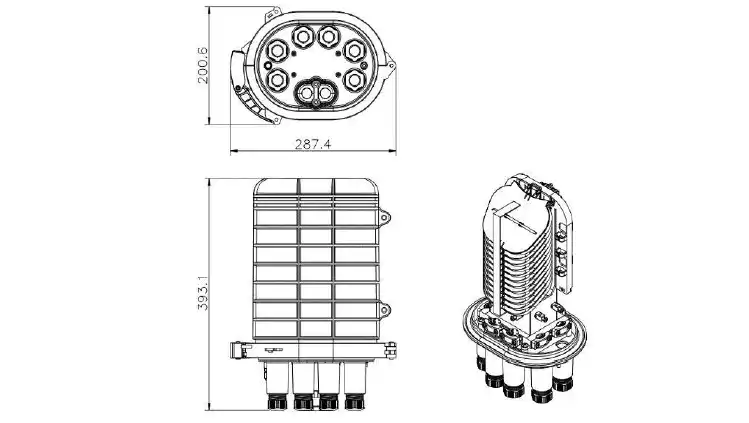

Dimensions (mm)
External Size: 287.4（L）×200.6（W）×393.1（H）mm
Installation
- Step 1: Open the splice closure, check and prepare the tools and accessories. (SPFC-NV-**M-4/4A-A need to open the cable hole by saw firstly.)
- Step 2: Strip out the fiber optic cable length about 1 meter, then put cable into fiber optic splice closure.
- Step 3: Fix the cable by cable clamps and fix cable strength core by screw on strengthen member fixing kit.
- Step 4: Put the stripped out fiber get through heat shrinkable sleeve, then fusion the fibers together. Put sleeve to the fibers connection and heat the sleeve, then put it into splice tray and coil the fibers.
- Step 5: Close the splice tray cover after test, fix the splice trays and cable storage tray by Velcro. Close the closure and fix by hoop.
Cable Port Sealing Methods
- SPFC-NV-**M-4/4A: Close the cable port by tightening the sealing nut.
- SPFC-NV-**H-4/4A-A: Close the cable port by heating the shrinkable tube.
- SPFC-NV-**M-4/4A-B: Close the cable port by tightening the sealing nut.

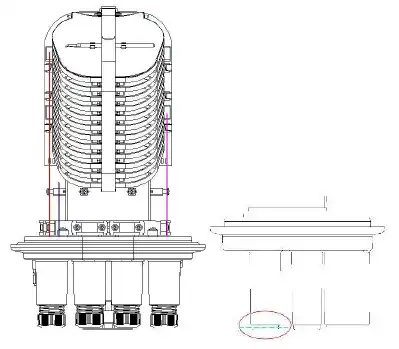

Installation Diagram

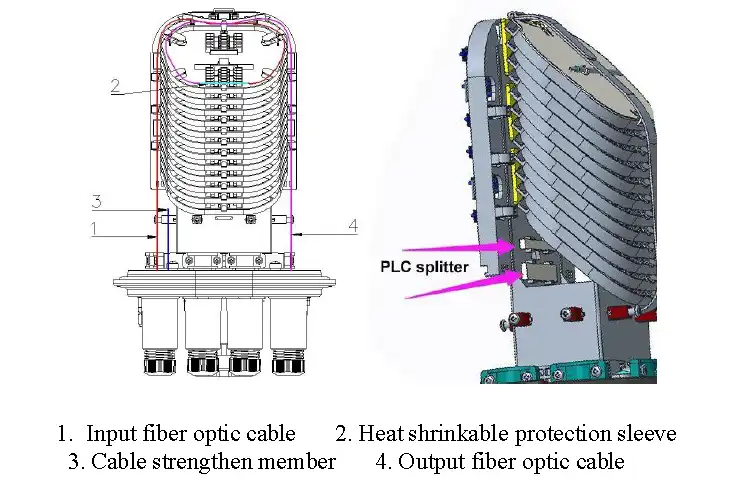

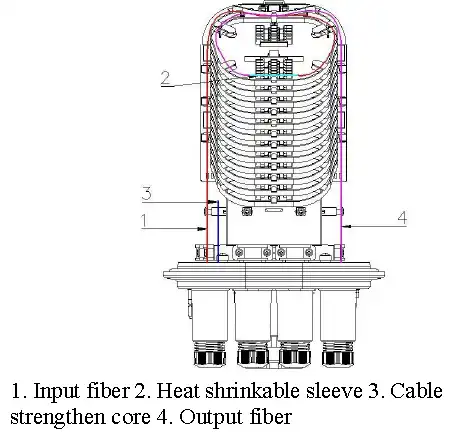

1. Input fiber optic cable 2. Heat shrinkable protection sleeve 3. Cable strengthen member 4. Output fiber optic cable

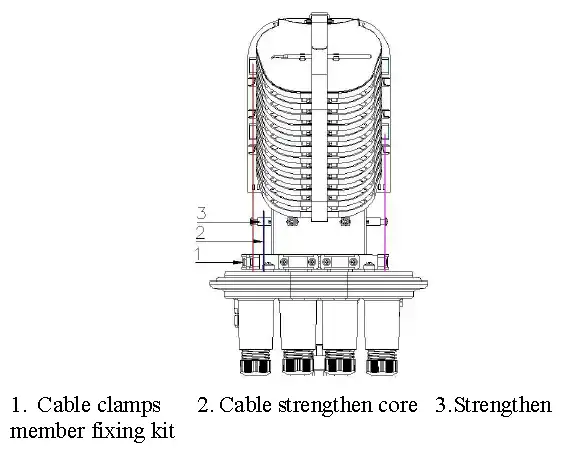

1. Cable clamps 2. Cable strength core 3. Strengthen member fixing kit
Ordering Information
| Model | Description | Weight/carton |
|---|---|---|
| SPFC-NV-72M-4/4A | Fiber Closure Dome type 72 cores 24 Cores Splice Tray 4IN 4OUT Mechanical Splicing type A | 28.5KG/8pcs |
| SPFC-NV-96M-4/4A | Fiber Closure Dome type 96 cores 24 Cores Splice Tray 4IN 4OUT Mechanical Splicing type A | 29KG/8pcs |
| SPFC-NV-144M-4/4A | Fiber Closure Dome type 144 cores 24 Cores Splice Tray 4IN 4OUT Mechanical Splicing type A | 29KG/8pcs |
| SPFC-NV-216M-4/4A | Fiber Closure Dome type 216 cores 24 Cores Splice Tray 4IN 4OUT Mechanical Splicing type A | 29KG/8pcs |
| SPFC-NV-288M-4/4A | Fiber Closure Dome type 288 cores 24 Cores Splice Tray 4IN 4OUT Mechanical Splicing type A | 29KG/8pcs |
| SPFC-NV-144H-4/4C | Fiber Closure Dome type 144 cores 24 Cores Splice Tray 4IN 4OUT Heat sealing Splicing type C | 29KG/8pcs |
| SPFC-NV-216H-4/4C | Fiber Closure Dome type 216 cores 24 Cores Splice Tray 4IN 4OUT Heat sealing Splicing type C | 29KG/8pcs |
| SPFC-NV-288H-4/4C | Fiber Closure Dome type 288 cores 24 Cores Splice Tray 4IN 4OUT Heat sealing Splicing type C | 29KG/8pcs |
Contact Us
Note: If you need more customized services, please contact us.
