SPFC-NV-144H-5/5A Dome Fiber Optic Splice Closure
Features
- The closure can be used in duct, buried, overhead, etc.
- High quality impact material: PP shell and ABS internal
- Designed for FTTH with adapter if needed
- Fiber storage with big basket
- Modular fiber management system
- Cable diameter range: 9~22mm
- Sealing way of cables: heat shrink seal cable port + mechanical shell
- Quality warranty: 2 years
- Lifespan: more than 25 years
- IP rating: IP68
Specifications
| Parameter |
Specification |
| Environment Temperature |
-30℃~+60℃ |
| Atmospheric Pressure |
70-106Kpa |
| Material |
High strength polypropylene (PP), which can assure any items of physical performance is excellent |
Product Specifications
| Model |
Type |
Max Trays |
Single Core per Tray |
Round Port (mm) |
Oval Port (mm) |
Max Core |
D×H (mm) |
Weight (kg) |
| SPFC-NV-144H-5/5A |
Single Core |
3 |
48 |
16 |
80×50 |
144 |
160×540 |
4.5 |
| Ribbon |
2 |
144 |
16 |
80×50 |
288 |
160×540 |
4.5 |

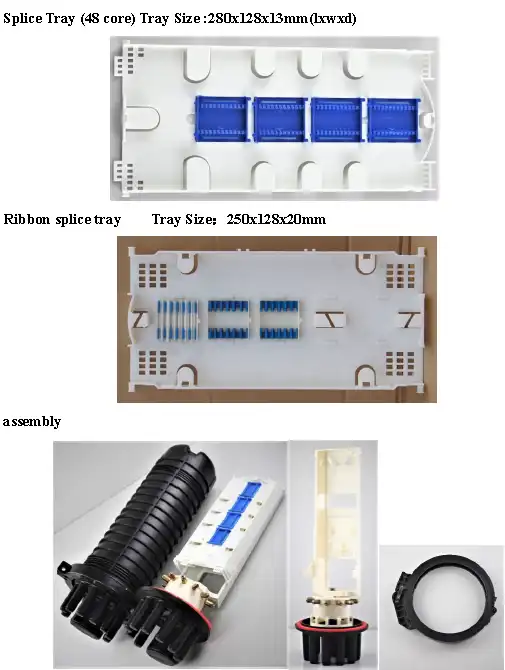

Parts and Accessories
| Part Name |
Specification |
| Splice Tray (48 core) |
Tray Size: 280×128×13mm (L×W×D) |
| Ribbon Splice Tray Assembly |
Tray Size: 250×128×20mm |
Ordering Information
| Part Number |
Product Description |
| SPFC-NV-144H-5/5A |
Fiber Closure Vertical Splicing type, 144 Cores Max, 24 Cores Splice Tray, 5IN 5OUT, Hot melt sealing type A |
Note: If you need more customized services, please contact us.
