SPFC-NV-144H-2/18A Dome Fiber Optic Splice Closure
Application
SPFC-NV-144H-2/18A Dome Closure is a member of dome closure, used for the products' straight through connection in the optical transmission process, provides protection for the joint connection.
Features
- All performance indicators meet the requirements of the latest national standards
- The outer box body is made of high-strength engineering plastics, it has features of light weight, high mechanical strength, anti aging, strong corrosion resistance, lightning resistance, and long service life
- There are 16 circular cable ports and 1 oval port, totally 17 cable ports, among them 1 oval port can be used for cable loop through
- Stacked structure splice tray makes the fiber core configuration flexible, the independent insulation grounding device makes it safe and easy to operate; the optical fiber core configuration, expansion and the cable grounding flexible, convenient and safe
- Type 3 splice tray is provided with dedicated PLC splitter slots for 1:8 or 1:16 PLC splitter
- It can be used for overhead, pole, wall and underground installation with good sealing performance
Technical Index
| Parameter | Specification |
|---|---|
| Fiber radius of curvature | >40mm |
| Optical disk additional loss | <0.01dB |
| Temperature Range | -20°C ~ +60°C |
| Antilateral pressure | >2000N/10cm |
| Shock resistance | >20N.m |
| Protection level | IP68 |
Specification
| Parameter | 8 Cores | 16 Cores | 24 Cores |
|---|---|---|---|
| Type | SPFC-NV-144H-2/18A | ||
| Size(mm) | Φ325×510 | ||
| Cable port | 1 oval port, 16 circular ports | ||
| Cable diameter(mm) | Φ7~Φ26 | ||
| Splice tray capacity(core) | 8 | 16 | 24 |
| Max splicing tray No. | 72pcs | 36pcs | 36pcs |
| Max capacity:(single core) | 576 | 576 | 864 |
| Sealing type | Heat shrinkable sealing | ||
Installation Steps
- Optical cable stripping:
- Loop through cable (unbroken cable): mark the cut point of the sheath, strip about 180 cm or according to the relevant requirements
- Broken cable: Peel off a pair of optical cables to be connected, remove the cable protective layer from the mark, peel off 120cm sheath, and maintain the internal integrity
- Open the port: According the requirement, use a saw to cut the cable port
- Install heat shrinkable tube: Put the heat shrinkable tube on the peeled cable, introduce it into the closure

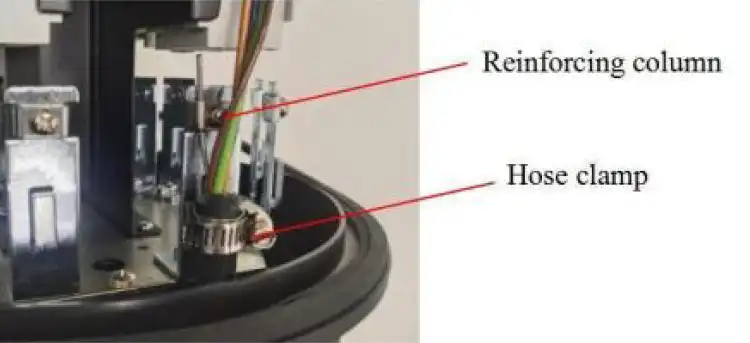

- Fix the cable: After the optical cable enters the box, locked it with hose clamp, fix the reinforced column with presser, introduced the docked cables into splicing tray for splicing
- Heat shrinkable sealing: Wrap the junction between the optical cable and the heat shrink tube with tin foil to avoid overheating and damaging the cable. Heat the cable with a torch until the heat shrink tube is completely attached to the port. Wait till it to cool naturally (note: when heating the oval port, separate the heat shrink tube with a dividing clip)
- Cover installation: After operation completed, place a sealing ring in the groove of the base, put the cover on and lock them with a plastic clamp
- Wall & pole mounting operation: Fix the tray to the bottom of the product with 4 screws, then connect two L-shaped brackets to the tray with bolts
Installation Methods
- Wall mounting: Use expansion screws to lock the L-shaped bracket with the wall

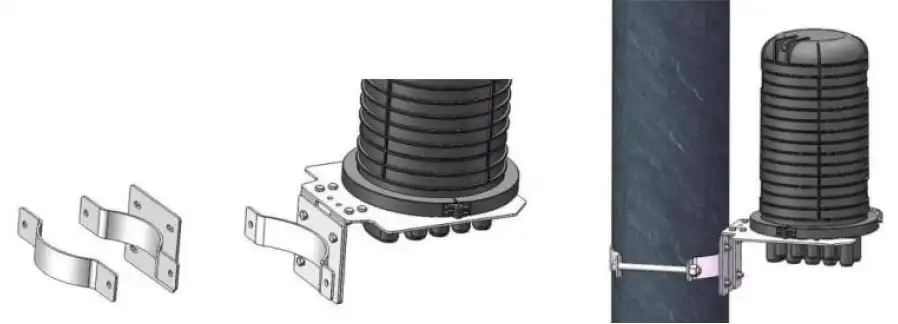

- Pole mounting: Connect the pole holding component with the L-shaped bracket, and lock the arc part and the connecting component with the long bolts
Accessories
| No | Type | Qty |
|---|---|---|
| 1 | Dividing clip | 1pcs |
| 2 | Φ9~Φ16 Hose Clamp | 8pcs |
| 3 | Φ16~Φ25 Hose Clamp | 4pcs |
| 4 | Φ19~Φ29 Hose Clamp | 6pcs |
| 5 | Heat shrinkable tube for access cable(port 11~18) | 8pcs |
| 6 | Heat shrinkable tube for access cable(port 7~10) | 4pcs |
| 7 | Heat shrinkable tube for access cable(port 3~6) | 4pcs |
| 8 | Heat shrinkable tube for access cable(port 1~2) | 1pcs |
| 9 | Tin foil | 5pcs |
| 10 | Wall mounting components | 1set |
| 11 | Pole mounting components | 1set |
| 12 | Outer hexagonal screw M8×20(with flat washer, spring washer, nut) | 8set |
| 13 | M10×150 Outer hexagonal screw(harness cord) | 2set |
| 14 | M10 hexagon nut + spring washer + flat washer | 4set |
| 15 | Φ5×25 split pin | 4set |
| 16 | M8×70 Expansion bolt | 4set |
| 17 | Grounding wire | 1set |
| 18 | Splice bag | According to needs |
Ordering Information
| Part Number | Product Description |
|---|---|
| SPFC-NV-144H-2/18A | Fiber Closure Vertical Splicing type, 144Cores Max, 24Cores Splice Tray 2IN 18OUT Hot melt sealing type A |
Note: If you need more customized services, please contact us.
