SPFC-NH-XXXM-4/4D Horizontal Fiber Optic Splice Closure: Complete Product Guide
This article is based on actual SPFC-NH-XXXM-4/4D product specifications, including complete product description, specifications, installation methods, and ordering information
I. Product Description
The Model SPFC-NH-XXXM-4/4D is mainly used for optical fiber connection and protection. This kind of box is suitable for the connection of overhead, pipe and buried straight and branch. The box body and base are sealed with hoops and rubber. The closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure. The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment. The splice trays (FOST) inside the closure are turnable like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40 mm. Each optical cable and fiber can be operated individually. The product can be opened again and reused after installation.
II. Product Specifications
| Item | Specification |
|---|---|
| Model | SPFC-NH-XXXM-4/4D |
| Dimension(mm) | 420mmx245mmx130mm |
| Material | PP+GF |
| Weight(Kg) | 4.55kg |
| Diameter of Cable(mm) | 8-18 |
| No. of Cable Inlet/Outlet | 4IN-4OUT |
| Number of Fibers per Tray | 24(single core) |
| Max. Number of Trays | 12 |
| Max. Number of Fibers | 288(single core) |
| Sealing of Inlet/Outlet ports | Mechanical seal |
| Sealing of Shells | Silicon rubber |
| Working Temperature | -40°C~80°C |
| Protection Grade | IP68 |
III. Installation Methods

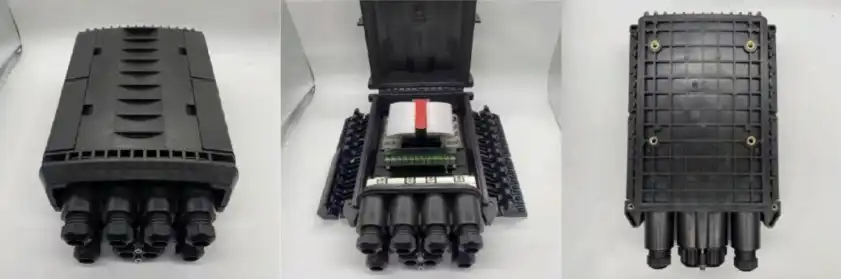

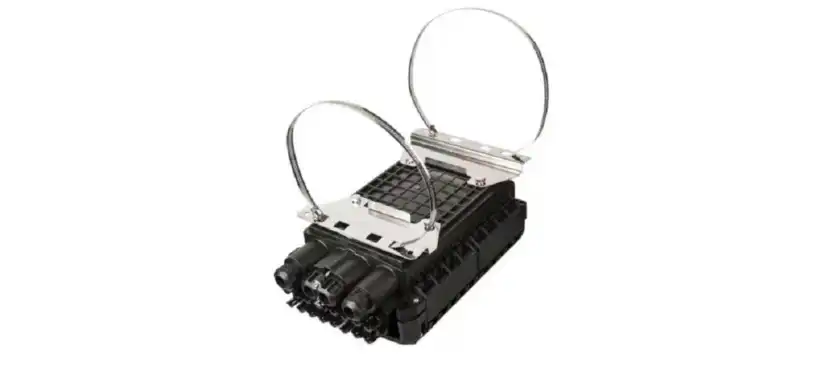

The SPFC-NH-XXXM-4/4D supports multiple installation methods, suitable for different application scenarios. The product physical drawing shows the appearance and internal structure of the closure.
IV. Ordering Information
| Model | Description |
|---|---|
| SPFC-NH-96M-4/4D | Fiber Closure Horizontal Splicing type, 96 Cores, 24 Cores Splice Tray, 4IN 4OUT, Mechanical Splicing type D |
| SPFC-NH-144M-4/4D | Fiber Closure Horizontal Splicing type, 144 Cores, 24 Cores Splice Tray, 4IN 4OUT, Mechanical Splicing type D |
| SPFC-NH-288M-4/4D | Fiber Closure Horizontal Splicing type, 288 Cores, 24 Cores Splice Tray, 4IN 4OUT, Mechanical Splicing type D |
V. Product Features Summary
- Quality materials: Made of PP+GF engineering plastic, resistant to acid, alkali and salt corrosion, anti-aging
- Reliable sealing: Hoop and rubber sealing, mechanical seal ports, silicon rubber shell sealing
- Large capacity: Supports up to 288 cores fiber, 12 splice trays
- Flexible operation: Splice trays can be turned like booklets, each optical cable and fiber can be operated individually
- Adequate space: Ensures fiber winding curvature radius of 40mm
- Reusable: Can be opened again and reused after installation
- High protection grade: IP68 protection grade, adapts to harsh environments
- Wide working temperature: -40°C~80°C working temperature range
Note: If you need more customized services, please contact us
