SPFC-NH-144M-4/6B Horizontal Pre-Connected Fiber Closure: Complete Product Guide
This article is based on actual SPFC-NH-144M-4/6B product specifications, including complete product overview, features, technical specifications, and ordering information
I. Product Overview

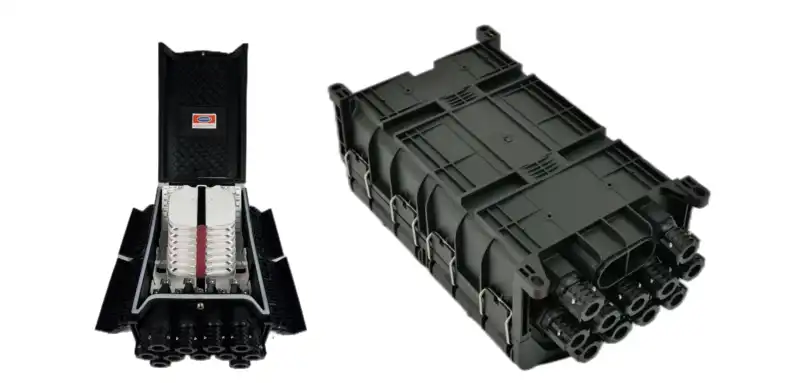

The SPFC-NH-144M-4/6B is a half-style mechanical seal pre-connected horizontal closure. The equipment features a single-ended design and is generally used as a hub box node in an unequal ratio fully pre-connected solution, converting traditional optical cables into single core pre-connected SC/APC output ports.
II. Product Features
- Half-style mechanical seal design: The box is a half-style closure that is sealed mechanically. The back of the box comes with a reinforced backplane. You can just wear the hoop. The additional backplane can also be used.
- Fast Plug design: Fast Plug realizes cable fastening and sealing outside the closure, leads to fast installation.
- Fast insertion fixing: Fast insertion can fix and seal the optical cable outside the connector box for quick installation.
- Multiple installation methods support: Supports pole holding, wall hanging, cable hanging.
- Multiple installation scenarios: Suitable for above-ground, underground, human well, hand well installation scenarios.
- Quality materials: Made of PP+GF material, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP68.
III. Technical Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Model No. | SPFC-NH-144M-4/6B | Color | Black/Gray |
| Capacity | 72/96/144/192 cores | Protection rating | IP68 |
| Material | PP+GF | Inlet/outlet | 2/11 |
| Dimension(mm) | 355x215x145 | Weight | 2.5kg |
IV. Packaging Information
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Quantity | 4 PCS | G.W | 13.5kg |
| Carton size | 48x44x34cm | N.W | 12.77kg |
V. Ordering Information
| Model | Description |
|---|---|
| SPFC-NH-144M-4/6B | Fiber Closure Horizontal Splicing type, 144 Cores Max, 12 Cores Splice Tray 4 IN 6 OUT Mechanical Seal, available for 12 pcs 1:8 Micro PLC splitter without connector, type B, IP68 |
VI. Application Scenarios
1. Unequal Ratio Fully Pre-Connected Solution
The SPFC-NH-144M-4/6B serves as a hub box node, converting traditional optical cables into single core pre-connected SC/APC output ports, suitable for unequal ratio fully pre-connected network architecture.
2. Multiple Installation Environments
- Above-ground installation: Suitable for aerial optical cable networks
- Underground installation: Suitable for underground direct burial optical cable networks
- Human well installation: Suitable for optical cable branching in human wells
- Hand well installation: Suitable for optical cable branching in hand wells
3. Multiple Installation Methods
- Pole mounting: Use pole mounting kit to fix the closure on utility poles
- Wall mounting: Use wall mounting kit to fix the closure on walls
- Cable hanging: Hang the closure on the optical cable
VII. Product Advantages Summary
- Fast installation: Fast Plug quick insertion design realizes cable fastening and sealing outside the closure, significantly reducing installation time
- High protection level: IP68 protection level, wet-proof, water-proof, dust-proof, suitable for various harsh environments
- Flexible capacity: Supports 72/96/144/192 cores multiple capacity configurations, meeting different network scale requirements
- Multiple installation methods: Supports pole mounting, wall mounting, cable hanging, adapting to different installation scenarios
- Pre-connected solution: Supports installation of 12 pcs 1:8 Micro PLC splitters, suitable for unequal ratio fully pre-connected solutions
- Quality materials: PP+GF material, anti-aging, extending product service life
Note: If you need more customized services, please contact us
