SPDF-O16SCS-PMPE/PMHPE Splitter Distribution Box Product Guide
General Description
The SPDF-O16SCS-PMPE/PMHPE Splitter Distribution Box serves as a termination point for the feeder cable to connect with the drop cable in FTTx communication network systems. It integrates fiber splicing, splitting, distribution, storage, and cable connection into a single unit, while providing reliable protection and management for FTTx network deployment.
Features
- Fully enclosed structure with an elegant appearance
- Effectively protects and manages cables
- Secured with an anti-theft locking mechanism
- Standard dimensions and lightweight design
- Available in high-quality PC+ABS material or ABS material
- Excellent dust and moisture resistance with IP65 waterproof rating
- Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution, and more, all integrated in one unit
- Compatible with SC and LC duplex adapters and pigtails
- Easy to operate
- Suitable for both outdoor and indoor use
Applications
- Telecommunication subscriber loops
- Fiber to the Home (FTTH)
- LAN/WAN networks
Technical Data
| Item | Parameter |
|---|
| Model No. | SPDF-O16SCS-PMPE/PMHPE |
| Mounting Way | Wall-mounting or Pole-mounting |
| PLC Type | Steel tube splitter |
| Work Temperature | -40°C ~ +85°C |
| Relative Humidity | <=85% (+30°C) |
| Atmospheric Pressure | 70Kpa ~ 106Kpa |
| Insert Loss | <=0.2dB |
| UPC Return Loss | >=50dB |
| APC Return Loss | >=60dB |
| Insert and Pullout Life | >=1000 times |
| Insulation | The grounding device is insulated with the termination box IR >=1000mΩ/500V (direct current) |
| Withstand Voltage | Between the grounding device and the box body, the withstand voltage exceeds 3000V/min with no breakdown or flashover. U>=3000V (direct current) |

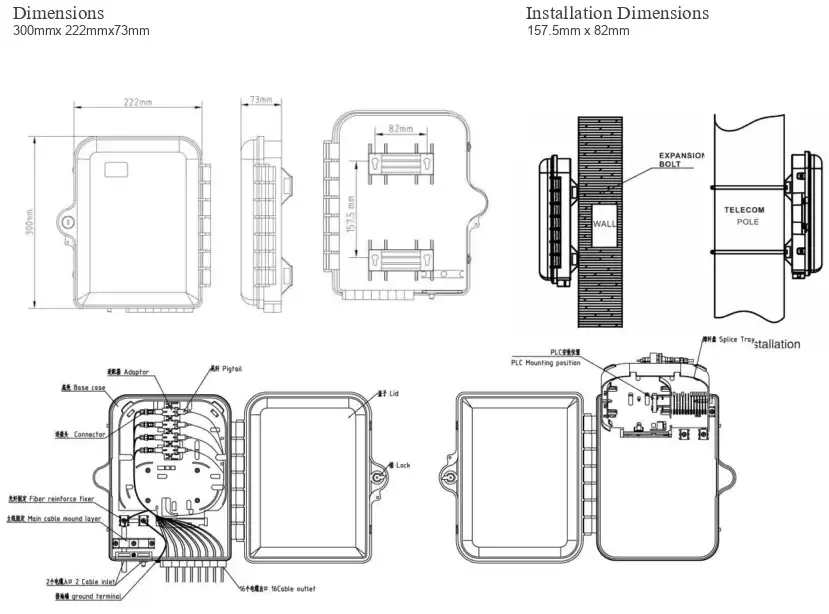

Dimensions & Installation
| Dimensions | Installation Dimensions |
|---|
| 300mm x 222mm x 73mm | 157.5mm x 82mm |
Part Numbers
| Part Number | Product Description |
|---|
| SPDF-O16SCS-PMPE | Splitter Distribution Box, Outdoor pole-mounted/wall-mounted, 16 cores, Simplex SC/Duplex LC type available for Steel tube splitter installation, without hoop, without adapters, pigtails, and splitter, Plastic type E |
| SPDF-O16SCS-PMHPE | Splitter Distribution Box, Outdoor pole-mounted/wall-mounted, 16 cores, Simplex SC/Duplex LC type available for Steel tube splitter installation, with hoop, without adapters, pigtails, and splitter, Plastic type E |
Note: If you need more customized services, please contact us.
