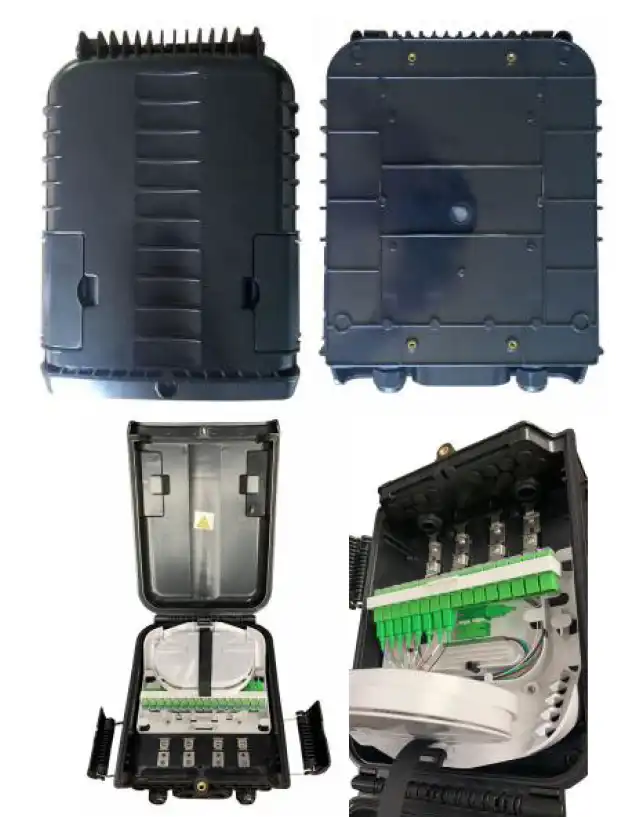

General Description
This Fiber distribution box is used in the FTTH network for connecting the drop cable to the feeder cable. It provides fiber splicing, splitting, storage and management within a suitable place. The mini-PLC can be installed in the box which can be installed in wall or pole mounting mode.
Features
- Beautiful and compact model, easy for installation
- Material: PC+ABS
- Neat fiber management and good protection
- Excellent sealing performance, waterproof and dustproof, meeting the ingress protection grade of IP65/66
- Clamping for feeder cable and drop cable, fiber splicing fixation, storage, distribution, etc. all in one
- Cable, pigtails and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance
- Suitable for indoor and outdoor applications, supporting wall mounting and pole mounting
Application
- Telecommunication subscriber loop
- Fiber to the home (FTTH)
- LAN/WAN
Specification
| Configuration Table | Wall Mounting | Pole Mounting Installation |
|---|---|---|
| Model | 16 cores | 16 cores |
| Size (mm) | 290×210×82 | 290×210×82 |
| Material | PC/ABS | PC/ABS |
| Color | Black | Black |
| Inner box size (mm) | 300×220×95 | 300×220×115 |
| Individual weight (kgs) | 1.34 | 1.44 |
| Outer box size (mm) | 500×310×460 | 600×310×460 |
| Gross Weight (kgs) | 14.1 | 15.1 |
| Outer box capacity (pcs) | 10 | 10 |
Drawing
Cable connection diagram

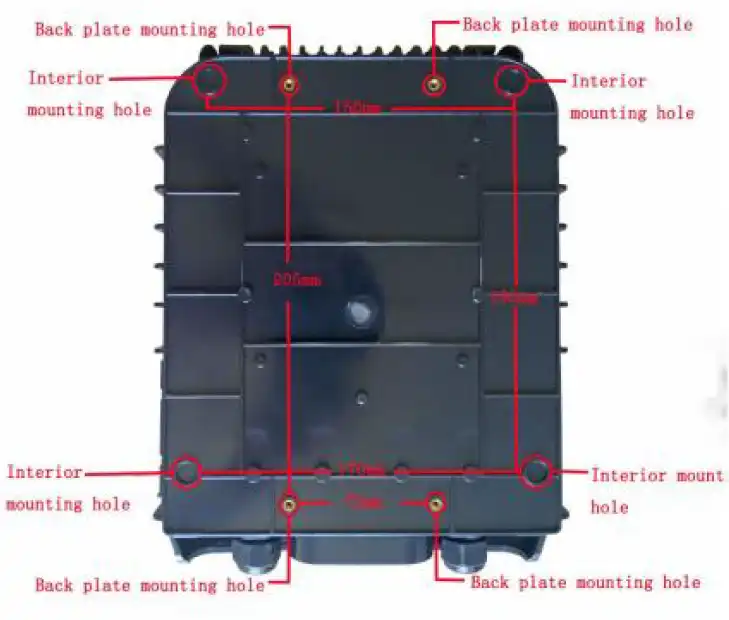

Product mounting hole diagram
Configuration Table

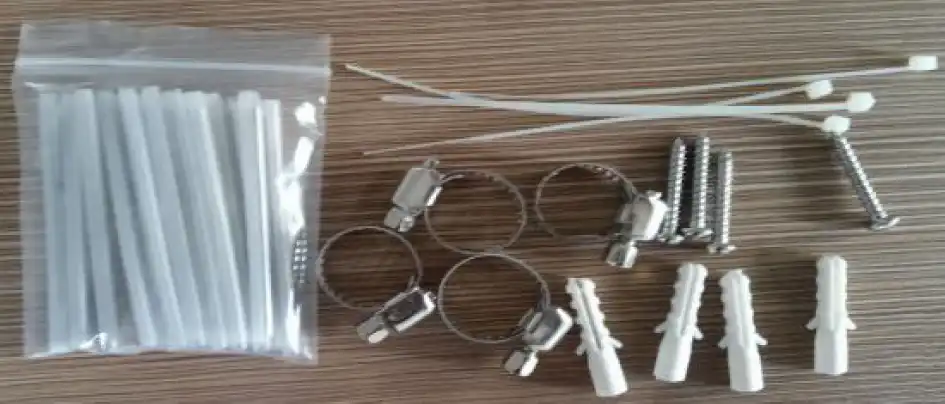

Regular Accessories (Wall Mounted)

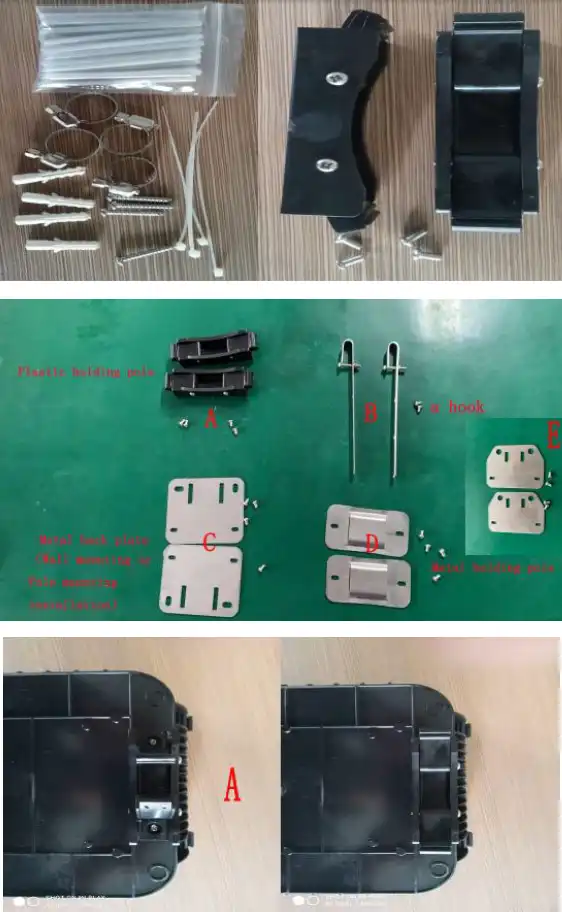

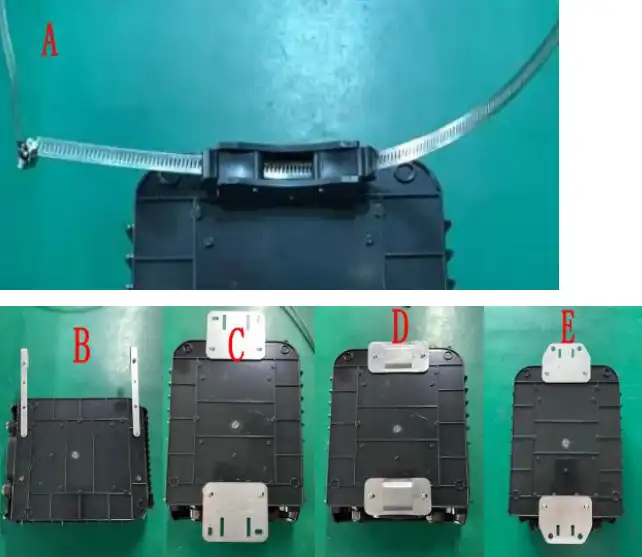

Pole Mounting Accessories
Ordering Information
| Part Number | Product Description |
|---|---|
| SPDF-O16SCS-PMPF | Splitter Distribution Box Outdoor wall mounted 16 cores Simplex SC/Duplex LC type available for Steel tube splitter installation without hoop, adaptors, pigtails and splitter, type F |
| SPDF-O16SCS-PMHPF | Splitter Distribution Box Outdoor pole mounted 16 cores Simplex SC/Duplex LC type available for Steel tube splitter installation with hoop, without adaptors, pigtails and splitter, Plastic type F |
