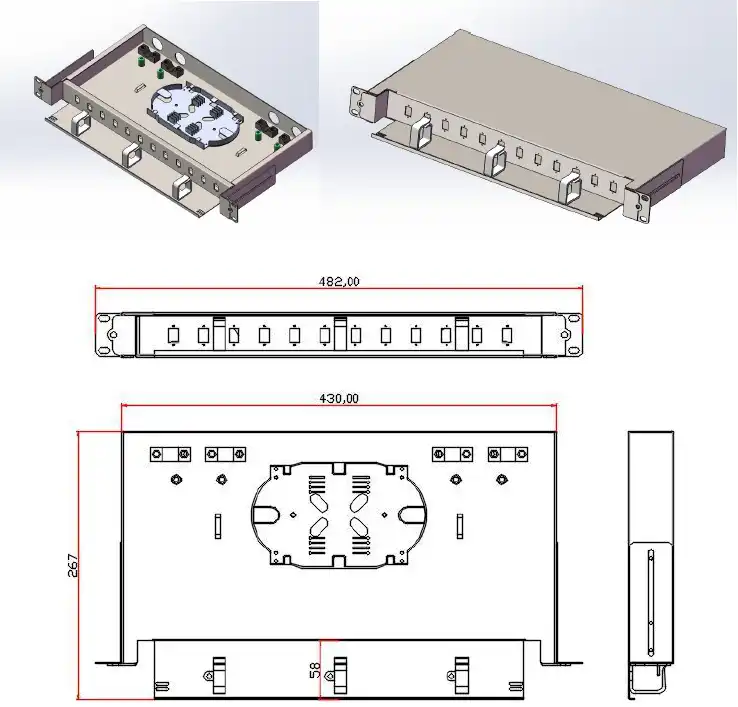

SPDF-IxxSCT-DME Terminal Box Indoor 19inch Rack Drawer
Description
This kind of terminal box is used for optical cable terminal branch connection, 19" standard structure, rack installation. The cable management ring type is helpful for managing cable. The Connector plate is flexible to match FC, SC, LC, ST etc.
Features
- Standard 19inch structure, could be installed on various of standard racks.
- Drawer type for sliding flexibly as an easy operation design.
- Suitable for ribbon and single fiber.
- Frame plate is suitable for installing sorts of adaptors such FC, SC, ST, 2LC etc.
- Three-in-One of fiber splicing wrapping & storage Distribution with smart configuration.
- Simple but elegant frame which is with average color painting and has enough tolerance for compact resistance.
- Fiber curvature radius: ≥40mm.
- There is no additional loss of optical fiber in the enclosure.
- Applicable temperature range is -5℃ ~ +40℃.
- The series of products by the ministry of information industry standard YD/T 2150-2010, design and manufacture of YD/T1117-2001.
Application
- Telecommunication subscriber loop
- Fiber to the home (FTTH)
- LAN/WAN
List of Accessories
| Accessory | 1U | 2U | 3U | 4U |
|---|---|---|---|---|
| Installation Ear | 2 copies | 2 copies | 2 copies | 2 copies |
| Adapter Mounting Screw | 0~48 beads | 0~96 particles | 0~192 beads | 0~288 beads |
| Fiber Splicing Sleeve | 24 branches | 48 branches | 96 branches | 144 branches |
| M4*6 with Pad and Nickel Plating | 6 | 12 stars | 12 stars | 12 stars |
Ordering Information
| Model No. | Size (mm) | Max. Capacity (Single Core) | Description |
|---|---|---|---|
| SPDF-I12SCT-DME | 482*300*45 | 12 | Terminal Box Indoor 19inch rack drawer 12 ports Simplex SC/Duplex LC type with cable management ring without adaptor, pigtails and splitter Cold rolled steel E type 1U |
| SPDF-I24SCT-DME | 482*300*45 | 24 | Terminal Box Indoor 19inch rack drawer 24 ports Simplex SC/Duplex LC type with cable management ring without adaptor, pigtails and splitter Cold rolled steel E type 1U |
| SPDF-I48SCT-DMD | 482*300*90 | 48 | Terminal Box Indoor 19inch rack drawer 48 ports Simplex SC/Duplex LC type without adaptor, pigtails and splitter Cold rolled steel type D 2U |
| SPDF-I96SCT-DMD | 482*300*135 | 96 | Terminal Box Indoor 19inch rack drawer 96 ports Simplex SC/Duplex LC type without adaptor, pigtails and splitter Cold rolled steel type D 3U |
| SPDF-I144SCT-DMD | 482*300*180 | 144 | Terminal Box Indoor 19inch rack drawer 144 ports Simplex SC/Duplex LC type without adaptor, pigtails and splitter Cold rolled steel type D 4U |
Note: If you need more customized services, please contact us.
