Product Overview
The SPAD-LCF-LCF-A-HDS-PSW is a professional duplex waterproof LC adaptor with LC/LC female to female design, IP67 protection rating, and supports 10Gb/s data transmission rate. The adaptor uses APC single-mode plastic material with excellent waterproof performance and reliable connection stability, suitable for outdoor fiber optic communications, industrial network connections, security surveillance and other fiber optic connection needs in harsh environments.
Product Features
- Duplex design, supports LC/LC female to female connection
- IP67 waterproof rating, suitable for harsh environments
- Supports 10Gb/s high-speed data transmission
- APC single-mode plastic material, low insertion loss
- Plug-in + thread pressure locking method
- Flame rating UL94V-0
- Nylon PA66 shell, oxidation resistant
- Silicone waterproof ring, excellent sealing performance
- Reusable ≥1000 plug and unplug cycles
- Suitable for cable outer diameter 3.2mm (double hole)
Product Specifications
Main Parameters
| Item |
Specification |
| Cores |
Double core |
| Type |
LC/LC Female to Female + Waterproof Head |
| Connection Method |
Plug in + thread pressure locking |
| Shell Size |
M20×1.5 |
| Scope of Connector Entry |
OD 3.2mm (double hole) |
| Data Rate |
10 Gb/s |
| Waterproof Rating |
IP67 |
| Flame Rating |
UL94V-0 |
Optical Characteristics
| Item |
Specification |
| Repetitiveness |
≤0.1 dB |
| Interchangeability |
≤0.2 dB |
| Insertion Loss |
≤0.2 dB (MAX ≤0.3 dB) |
| Return Loss |
≥50 dB (Wavelength 1200-1600nm SM/MM) |
Mechanical Characteristics
| Item |
Specification |
| Pulling Force |
Max 15N |
| Withdrawal Force |
Min 10N |
| Service Life |
≥1000 plug and unplug |
Material Characteristics
| Item |
Specification |
| Shell Material |
Nylon PA66 |
| Insert Material |
Oxidation Hao (Zirconia) |
| Waterproof Ring Material |
Silicone Rubber |
Environmental Characteristics
| Item |
Specification |
| Operating Temperature |
-25℃~+65℃ |
| Storage Temperature |
-5℃~+65℃ |
| Atmospheric Pressure |
86~106 kPa |
| Relative Humidity |
≤90% |
Installation Steps

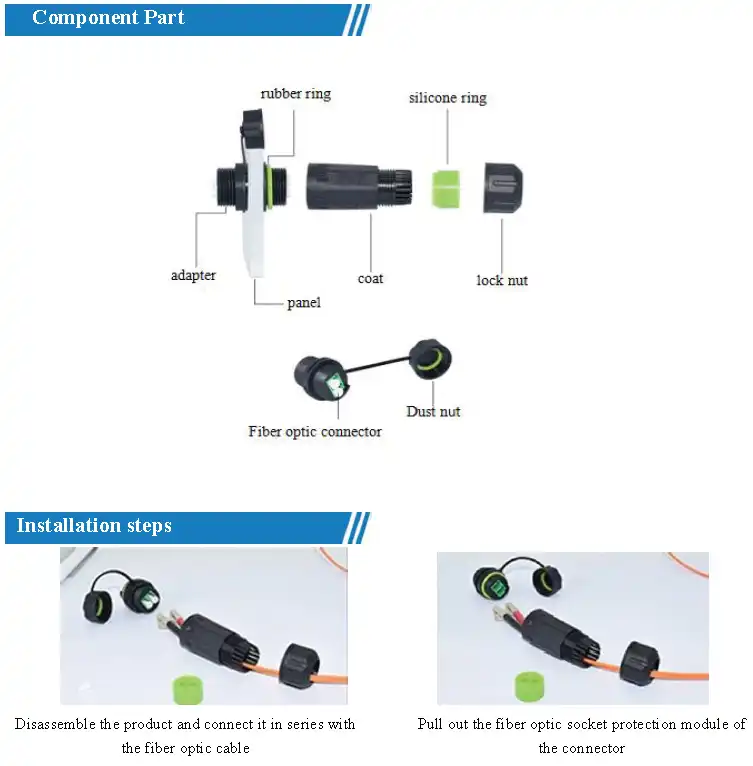

- Disassemble the product and connect it in series with the fiber optic cable
- Pull out the fiber optic socket protection module of the connector

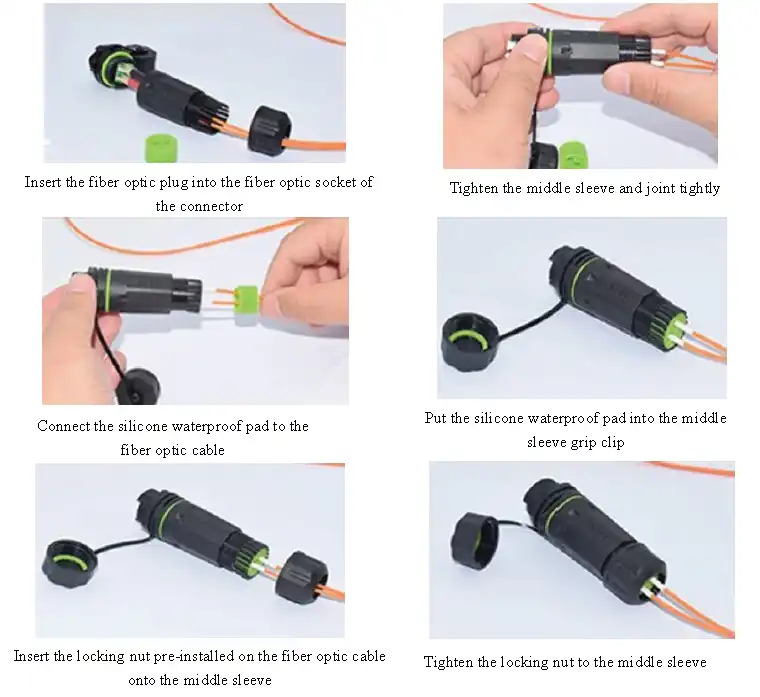

- Insert the fiber optic plug into the fiber optic socket of the connector
- Tighten the middle sleeve and joint tightly
- Put the silicone waterproof pad into the middle sleeve grip clip
- Connect the silicone waterproof pad to the fiber optic cable
- Insert the locking nut pre-installed on the fiber optic cable onto the middle sleeve
- Tighten the locking nut to the middle sleeve
Applications
- Outdoor fiber optic communication systems
- Industrial network connections
- Security surveillance systems
- Traffic signal control
- Broadcast TV transmission
- Military communication equipment
Ordering Information
| Part Number |
Product Description |
| SPAD-LCF-LCF-A-HDS-PSW |
Waterproof LC/LC Female to Female Adaptor, Duplex, APC Single-Mode, Plastic Material, IP67 Protection |
