Product Overview

The hand-held fiber inspection probe is a portable inspection device designed for fiber optic connector inspection. This probe eliminates the need to access the backside of patch panels or disassemble hardware devices prior to inspection, providing a fast and effective means of installing, troubleshooting or maintaining fiber optic patch panels.

Available Applications

Patch Panel Inspection

Many patch panels are designed to allow the front connector to be easily inspected but the back one is often difficult to access. Inspecting the connector on the front side of the panel can usually be performed with a simple fiber inspection microscope. However the back connectors are not as easily inspected with traditional microscopes thus requiring time-consuming troubleshooting. The probe offers a fast and effective means of installing troubleshooting or maintaining fiber optic patch panels.

Inspection of Cable Assemblies

When Video Inspection Probe is equipped with proper Adapter Tip you can also inspect patch cords pigtails and cable assemblies.

Structure/Parts

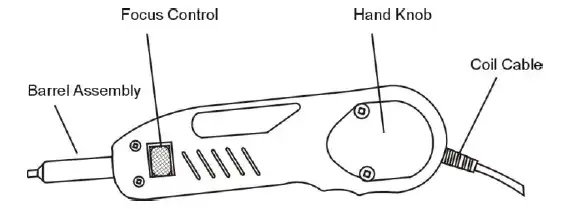

A. Analog Probe

This probe utilizes an analog CCD which outputs an NTSC or a PAL signal. The signal is routed through a 4-pin connector that routes power into the probe and the video signal out of the probe. This unit is suitable for use with our hand held LCD display.

a1. Barrel Assembly

The barrel assembly houses the optics which accommodates different adapters such as FC SC ST LC E2000 MTRJ and other customized PC or APC adapters.

a2. Focus Control

The default setting of magnification is 250x. When the figure shows on monitor screw the focus control to make it clearest.

B. Hand-Held LCD Display

3.5 inch Monitor

These monitors can be powered by an output 110-240V DC/AC or a rechargeable Li-ion battery equipped inside. Video input is dedicated to PAL/NTSC formatted probe. All of the display's controls are built into the handle for easy access.

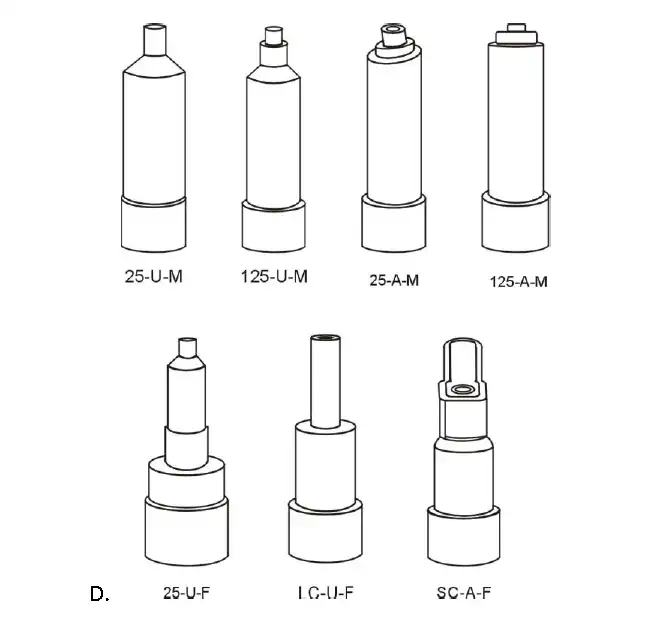

C. Standard Tips

Installation

Tip Assembly

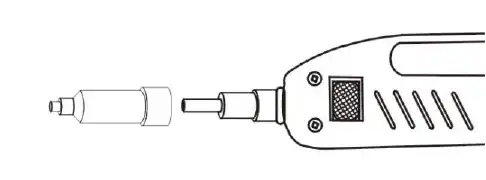

Installing Tips on Probe

Step 1

Locate tip you want to install and look at the threaded end. This screw acts as a "key" and is already mounted with the Key Channel. DO NOT try to screw the Key Channel off from the threaded Key which might destroy the whole probe.

Step 2

Slightly screw the Key that you need onto the Key Channel.

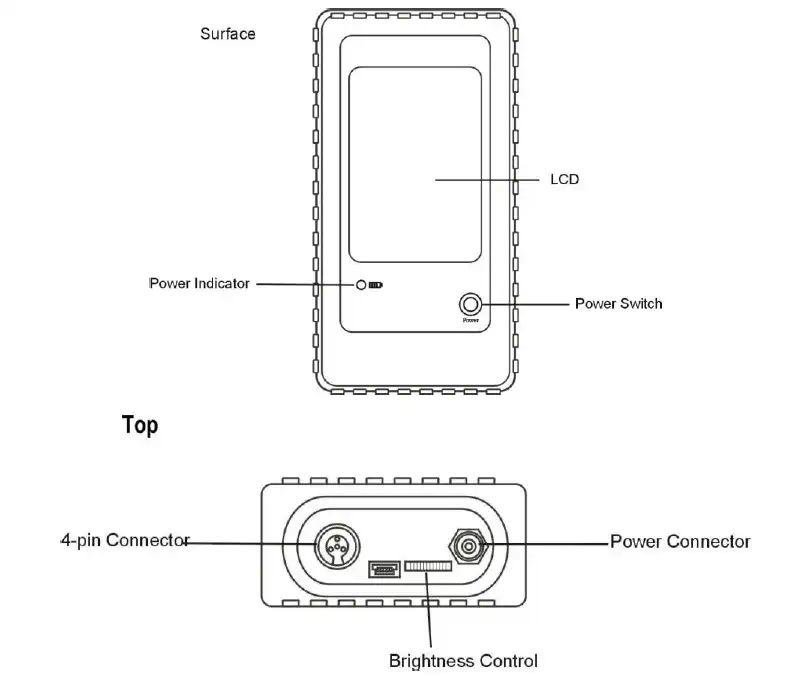

LCD Monitor Assembly & Controls

Using the LCD Display with the Probe

Step 1

Connect the cable from the probe to the monitor using the 4-pin connector on the bottom of the monitor.

Step 2

Connect the AC power adapter/charger if necessary.

On/Off Control

(Toggle switch) Press upward to turn the unit on, press downward to shut the unit off.

AC Power

Using the DC/AC power adapter has the following advantages: Use external power (DC/AC power adapter/charger) to power the LCD directly from a DC/AC power source or charge the battery pack. Both can be accomplished simultaneously.

Technical Specifications

Adapter Type Description

Other Parts

Accessories

Note: If you need more customized services, please contact us.
